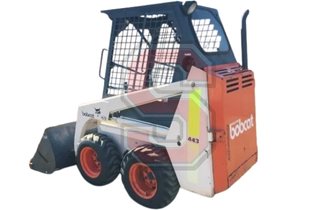

| Manufacturer | Bobcat |
| Model | 443B |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 1987-1994 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 15.0 HP | 11.2 kW |
| Lifting Capacity (35% Tipping) | 450 lbs | 204.1 kg |
| Lifting Capacity (50% Tipping) | 600 lbs | 272.1 kg |
| Operating Weight | 2513 lbs | 1139.9 kg |
| Tipping Load | 1200 lbs | 544.3 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 5.2 mph | 8.4 km |
Cycle Time
| Raise Lift Arms | 5.0 sec. |
| Lower Lift Arms | 4.0 sec. |
| Bucket Rollback | 2.5 sec. |
| Bucket Dump | 3.0 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 6.8 GPM | 25.7 LPM |
| Relief Pressure | 1330 psi | 89.6 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 4.0 gal | 15.1 L |
Engine Specs
| Manufacturer | Kubota |
| Model | D750–B |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | N/A |
| Rated Speed | 3000 RPM |
| Torque Power | 1800 RPM |
| Combustion | Indirect injection |
| Compression Ratio | |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | ||
| Net Power | 15.0 HP | 11.2 kW |
| Displacement | 46.5 cu. in. | 762 cc |
| Bore | 2.68 in. | 6.8 cm |
| Stroke | 2.76 in. | 7.0 cm |
| Peak Torque | 31.1 ft-lb | 42.2 N∙m |
| Coolant Capacity | 0.9 gal | 3.3 L |
| Engine Oil Capacity | 1.0 gal | 3.8 L |
| Fuel Tank Capacity | 1.7 gal | 6.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 71.5 in. | 181.7 cm |
| Bucket Hinge Pin | 92.4 in. | 234.7 cm |
| Width | 35.4 in. | 90.0 cm |
| Length | 96.0 in. | 243.9 cm |
| Dump Height | 72.2 in. | 183.2 cm |
| Dump Reach | 14.3 in. | 36.2 cm |
| Ground Clearance | 5.9 in. | 14.9 cm |
| Dump Angle | 38° |
| Rollback Angle | 26° |
| Departure Angle | 25° |
