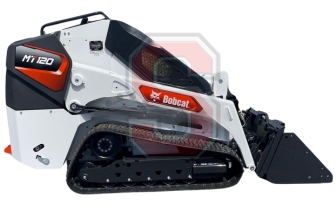

Manufacturer | Bobcat |
Model | MT120 |
Type | Mini track loader |
Lift Design | Vertical |
Years Made | 2025 |
Operating Specifications
US | Metric | |
---|---|---|
Horsepower | 24.5 HP | 18.2 kW |
Lifting Capacity (35% Tipping) | 1200 lbs | 544.3 kg |
Lifting Capacity (50% Tipping) | 1500 lbs | 680.4 kg |
Operating Weight | 3720 lbs | 1687.4 kg |
Tipping Load | 3468 lbs | 1573.1 kg |
Lift Breakout Force | ||
Tilt Breakout Force | ||
Max. Travel Speed | 4.7 mph | 7.5 km |
Ground Pressure | 4.3 psi | 29.0 kPa |
Cycle Time
Raise Lift Arms | |
Lower Lift Arms | |
Bucket Rollback | |
Bucket Dump |
Hydraulic System
US | Metric | |
---|---|---|
Pump Flow | 11.8 GPM | 44.7 LPM |
Relief Pressure | 2900 psi | 199.9 Bar |
Optional Flow | N/A | |
Hydraulic Capacity | 5.3 gal | 20.1 L |
Engine Specs
Manufacturer | Daedong |
Model | |
Type | Diesel |
Cylinders | 3 |
Emissions | Tier 4F |
Rated Speed | 3000 RPM |
Torque Power | |
Combustion | Direct injection |
Compression Ratio | |
Firing Order | 1-2-3 |
US | Metric | |
---|---|---|
Gross Power | 24.5 HP | 18.2 kW |
Displacement | 75.2 cu in. | 1232 cc |
Bore | ||
Stroke | ||
Peak Torque | ||
Coolant Capacity | ||
Engine Oil Capacity | ||
Fuel Tank Capacity | 8.1 gal | 30.6 L |
Dimensions
US | Metric | |
---|---|---|
Height | 57.6 in. | 146.3 cm |
Bucket Hinge Pin | 88.2 in. | 223.9 cm |
Width | 36.0 in. | 91.4 cm |
Length | 107.3 in. | 272.5 cm |
Dump Height | ||
Dump Reach | 22.2 in. | 56.4 cm |
Ground Clearance |
Dump Angle | |
Rollback Angle | |
Departure Angle |
Undercarriage
US | Metric | |
---|---|---|
Track Width | 9.1 in. | 23.1 cm |
Track Length | 86.8 in. | 220.4 cm |
Ground Contact Length |
