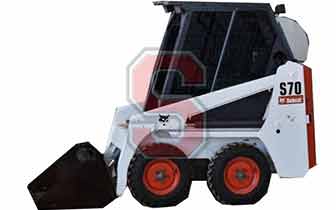

| Manufacturer | Bobcat |
| Model | S70 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2019 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 23.5 HP | 17.5 kW |
| Lifting Capacity (35% Tipping) | ||
| Lifting Capacity (50% Tipping) | 760 lbs | 344.7 kg |
| Operating Weight | 2892 lbs | 1311.8 kg |
| Tipping Load | 1520 lbs | 689.5 kg |
| Lift Breakout Force | 1935 lbs | 877.7 kg |
| Tilt Breakout Force | 1950 lbs | 884.5 kg |
| Push Force | 2140 lbs | 970.7 kg |
| Max. Travel Speed | 6.3 mph | 10.1 km |
Cycle Time
| Raise Lift Arms | 3.6 sec. |
| Lower Lift Arms | 2.7 sec. |
| Bucket Rollback | 2.1 sec. |
| Bucket Dump | 1.7 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 9.8 GPM | 37.1 LPM |
| Relief Pressure | 3000 psi | 206.8 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 4.0 gal | 15.1 L |
Engine Specs
| Manufacturer | Kubota |
| Model | D1005-E3B-BC-3 |
| Type | Diesel |
| Cylinders | 3 |
| Rated Speed | 3000 RPM |
| Torque Power | 2200 RPM |
| Combustion | Direct injection |
| Compression Ratio | 24:1 |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 23.5 HP | 17.5 kW |
| Displacement | 61.1 cu in. | 1001 cc |
| Bore | 3.0 in. | 7.6 cm |
| Stroke | 2.9 in. | 7.4 cm |
| Peak Torque | 45.6 ft-lb | 62.8 N∙m |
| Coolant Capacity | 1.8 gal | 7.0 L |
| Engine Oil Capacity | 1.2 gal | 4.7 L |
| Fuel Tank Capacity | 6.5 gal | 24.6 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 71.4 in. | 181.4 cm |
| Bucket Hinge Pin | 94.5 in. | 240.0 cm |
| Width | 36.0 in. | 91.4 cm |
| Length | 97.3 in. | 247.1 cm |
| Dump Height | 74.5 in. | 189.2 cm |
| Dump Reach | 15.8 in. | 40.1 cm |
| Ground Clearance | 5.5 in. | 14.0 cm |
| Dump Angle | 34° |
| Rollback Angle | 22° |
| Departure Angle | 25° |
Tire Size
| Front | 23 – 5.70 x 12 |
| Rear | 23 – 5.70 x 12 |
