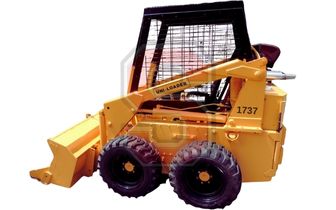

| Manufacturer | Case |
| Model | 1737 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 1971-1975 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 39.5 HP | 29.5 kW |
| Lifting Capacity (35% Tipping) | 1250 lbs | 567.0 kg |
| Lifting Capacity (50% Tipping) | 1700 lbs | 771.1 kg |
| Operating Weight | 5310 lbs | 2409.6 kg |
| Tipping Load | 2080 lbs | 943.5 kg |
| Lift Breakout Force | 2020 lbs | 916.1 kg |
| Tilt Breakout Force | 1660 lbs | 753.0 kg |
| Max. Travel Speed | 5.0 mph | 8.0 km |
Cycle Time
| Raise Lift Arms | 6.7 sec. |
| Lower Lift Arms | 4.6 sec. |
| Bucket Rollback | |
| Bucket Dump | 1.6 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 18.0 GPM | 68.0 LPM |
| Relief Pressure | ||
| Optional Flow | N/A | |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | Case |
| Model | G148B |
| Type | Gasoline |
| Cylinders | 4 |
| Emissions | N/A |
| Rated Speed | 2000 RPM |
| Torque Power | 1300 RPM |
| Combustion | Spark ignition |
| Compression Ratio | 7:1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 39.5 HP | 29.5 kW |
| Net Power | 37.0 HP | 27.6 kW |
| Displacement | 148 cu in. | 2425 cc |
| Bore | 3.4 in. | 8.6 cm |
| Stroke | 4.1 in. | 10.5 cm |
| Peak Torque | 115 ft-lb | 155 N·m |
| Coolant Capacity | 2.8 gal | 10.4 L |
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 17.0 gal | 64.4 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 84.5 in. | 214.6 cm |
| Bucket Hinge Pin | 115.5 in. | 293.4 cm |
| Width | 60.0 in. | 152.4 cm |
| Length | 120.0 in. | 304.8 cm |
| Dump Height | 86.5 in. | 219.7 cm |
| Dump Reach | 12.5 in. | 31.8 cm |
| Ground Clearance | 7.0 in. | 17.8 cm |
| Dump Angle | |
| Rollback Angle | 20° |
| Departure Angle | 18° |
