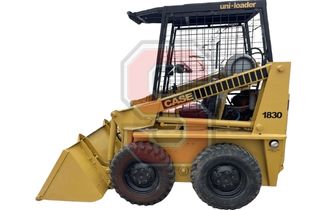

| Manufacturer | Case |
| Model | 1830 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 1974-1980 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 30.0 HP | 22.4 kW |
| Lifting Capacity (35% Tipping) | 746 lbs | 338 kg |
| Lifting Capacity (50% Tipping) | 1065 lbs | 483 kg |
| Operating Weight | 3990 lbs | 1810 kg |
| Tipping Load | 2130 lbs | 965 kg |
| Lift Breakout Force | 1875 lbs | 850 kg |
| Tilt Breakout Force | 3370 lbs | 965 kg |
| Max. Travel Speed | 5.8 mph | 10.0 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 9.4 GPM | 35.6 LPM |
| Relief Pressure | 2250 psi | 155.1 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 8.0 gal | 30.3 L |
Engine Specs
| Manufacturer | Renault |
| Model | R688 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | N/A |
| Rated Speed | 3200 RPM |
| Torque Power | |
| Combustion | |
| Compression Ratio | 8.5:1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | ||
| Net Power | 32.0 HP | 23.9 kW |
| Displacement | 67.7 cu in. | 1109 cc |
| Bore | 2.75 in. | 7.0 cm |
| Stroke | 2.83 in. | 7.2 cm |
| Peak Torque | ||
| Coolant Capacity | 2.0 gal | 7.5 L |
| Engine Oil Capacity | 0.7 gal | 2.8 L |
| Fuel Tank Capacity | 14.5 gal | 55.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 83.5 in. | 212.0 cm |
| Bucket Hinge Pin | 110.0 in. | 279.4 cm |
| Width | 45.4 in. | 115.5 cm |
| Length | 107.8 in. | 274.0 cm |
| Dump Height | 84.0 in. | 213.4 cm |
| Dump Reach | 19.0 in. | 48.3 cm |
| Ground Clearance | 6.8 in. | 17.3 cm |
| Dump Angle | 40° |
| Rollback Angle | 27° |
| Departure Angle |
