| Manufacturer | Case |

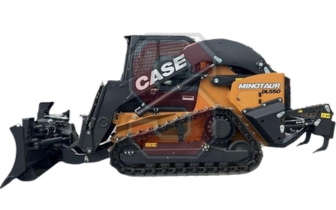

| Model | Minotaur DL550 |
| Type | Compact dozer loader |
| Lift Design | Vertical |
| Years Made | 2024-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 114.0 HP | 85.0 kW |
| Lifting Capacity (35% Tipping) | 3850 lbs | 1750 kg |
| Lifting Capacity (50% Tipping) | 5500 lbs | 2500 kg |
| Operating Weight | 18800 lbs | 8527 kg |
| Tipping Load | 11000 lbs | 4990 kg |
| Lift Breakout Force | 12084 lbs | 5481 kg |
| Tilt Breakout Force | 12907 lbs | 5854.5 kg |
| Max. Travel Speed | 5.9 mph | 9.5 km |
| Ground Pressure | 7.9 psi | 54.4 kPa |
Cycle Time
| Raise Lift Arms | 4.2 sec. |
| Lower Lift Arms | 2.2 sec. |
| Bucket Rollback | 1.6 sec. |
| Bucket Dump | 2.3 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.5 LPM |
| Relief Pressure | 3450 psi | 237.9 Bar |
| Optional Flow | 41.6 GPM | 157.5 LPM |
| Hydraulic Capacity | 10.7 gal | 40.5 L |
Engine Specs
| Manufacturer | FPT |
| Model | F5B FL413 D*C005 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Final |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | 22.0 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 114.0 HP | 85.0 kW |
| Net Power | 114.0 HP | 85.0 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 339 ft-lb | 459.6 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.2 gal | 8.5 L |
| Fuel Tank Capacity | 30.8 gal | 116.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 84.6 in. | 214.9 cm |
| Bucket Hinge Pin | 140.2 in. | 356.1 cm |
| Width | 78.6 in. | 199.6 cm |
| Length | 159.1 in. | 404.1 cm |
| Dump Height | 109.0 in. | 276.9 cm |
| Dump Reach | 39.0 in. | 99.1 cm |
| Ground Clearance | 12.6 in. | 32.0 cm |
| Dump Angle | 46.1° |
| Rollback Angle | 30° |
| Departure Angle | 28.2° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 18.0 in. | 45.7 cm |
| Track Length | 129.5 in. | 328.9 cm |
| Ground Contact Length | 66.0 in. | 167.6 cm |
