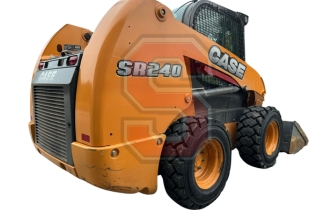

| Manufacturer | Case |
| Model | SR240 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2015-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 74.0 HP | 55.2 kW |
| Lifting Capacity (35% Tipping) | 1650 lbs | 748.4 kg |
| Lifting Capacity (50% Tipping) | 2400 lbs | 1088.6 kg |
| Operating Weight | 7400 lbs | 3356.4 kg |
| Tipping Load | 4800 lbs | 2177.2 kg |
| Lift Breakout Force | 5530 lbs | 2508.4 kg |
| Tilt Breakout Force | 8680 lbs | 3937.2 kg |
| Max. Travel Speed | 7.0 mph | 11.3 km |
| Optional High Speed | 10.5 mph | 16.9 km |
Cycle Time
| Raise Lift Arms | 3.6 sec. |
| Lower Lift Arms | 2.0 sec. |
| Bucket Rollback | 2.0 sec. |
| Bucket Dump | 2.6 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.5 LPM |
| Relief Pressure | 3050 psi | 210.0 Bar |
| Optional Flow | 37.6 GPM | 142.3 LPM |
| Hydraulic Capacity | 12.0 gal | 45.4 L |
Engine Specs
| Manufacturer | FPT |
| Model | F5H FL463 A*F001 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 final |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 74.0 HP | 55.2 kW |
| Net Power | 68.0 HP | 50.7 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 232 ft-lb | 314.5 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.2 gal | 8.5 L |
| Fuel Tank Capacity | 25.5 gal | 96.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 78.8 in. | 200.2 cm |
| Bucket Hinge Pin | 125.1 in. | 317.8 cm |
| Width | 69.6 in. | 176.8 cm |
| Length | 142.2 in. | 361.2 cm |
| Dump Height | 100.9 in. | 256.3 cm |
| Dump Reach | 22.6 in. | 57.4 cm |
| Ground Clearance | 8.0 in. | 20.3 cm |
| Dump Angle | 38.1° |
| Rollback Angle | 30.7° |
| Departure Angle | 23.5° |
