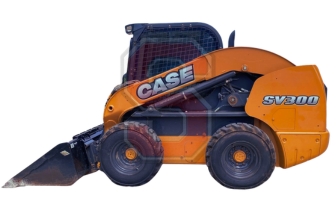

| Manufacturer | Case |
| Model | SV300 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2009-2014 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 90.0 HP | 67.1 kW |
| Lifting Capacity (35% Tipping) | 2200 lbs | 997.9 kg |
| Lifting Capacity (50% Tipping) | 3000 lbs | 1360.8 kg |
| Operating Weight | 8300 lbs | 3764.8 kg |
| Tipping Load | 6000 lbs | 2721.6 kg |
| Lift Breakout Force | 5090 lbs | 1952.3 kg |
| Tilt Breakout Force | 8585 lbs | 3894.1 kg |
| Max. Travel Speed | 7.2 mph | 11.6 km |
| Optional High Speed | 11.9 mph | 19.2 km |
Cycle Time
| Raise Lift Arms | 4.1 sec. |
| Lower Lift Arms | 2.6 sec. |
| Bucket Rollback | 2.0 sec. |
| Bucket Dump | 2.7 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 22.5 GPM | 85.2 LPM |
| Relief Pressure | 3050 psi | 210.3 Bar |
| Optional Flow | 33.2 GPM | 125.7 LPM |
| Hydraulic Capacity | 6.0 gal | 22.7 L |
Engine Specs
| Manufacturer | Case |
| Model | 432T/M3 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier III |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 90.0 HP | 67.1 kW |
| Net Power | 84.0 HP | 62.6 kW |
| Displacement | 195 cu in. | 3195 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.1 in. | 10.4 cm |
| Peak Torque | 251 ft-lb | 340 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.6 gal | 10.0 L |
| Fuel Tank Capacity | 22 gal | 83.3 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 78.8 in. | 200.2 cm |
| Bucket Hinge Pin | 130.0 in. | 330.2 cm |
| Width | 69.6 in. | 176.8 cm |
| Length | 141.9 in. | 360.4 cm |
| Dump Height | 102.9 in. | 261.4 cm |
| Dump Reach | 29.3 in. | 74.4 cm |
| Ground Clearance | 8.0 in. | 20.3 cm |
| Dump Angle | 53.5° |
| Rollback Angle | 35° |
| Departure Angle | 23.5° |
