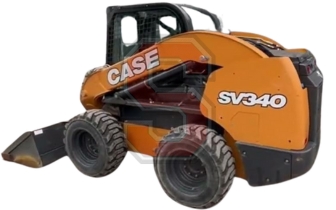

| Manufacturer | Case |
| Model | SV340 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2016-2020 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 90.0 HP | 67.1 kW |
| Lifting Capacity (35% Tipping) | 2650 lbs | 1202.1 kg |
| Lifting Capacity (50% Tipping) | 3400 lbs | 1542.2 kg |
| Operating Weight | 9100 lbs | 4127.7 kg |
| Tipping Load | 6800 lbs | 3084.4 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | 9531 lbs | 4323.2 kg |
| Max. Travel Speed | 7.7 mph | 12.4 km |
| Optional High Speed | 11.5 mph | 18.5 km |
Cycle Time
| Raise Lift Arms | 4.6 sec. |
| Lower Lift Arms | 3.5 sec. |
| Bucket Rollback | 2.0 sec. |
| Bucket Dump | 2.6 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.6 LPM |
| Relief Pressure | 3450 psi | 238 Bar |
| Optional Flow | 38.7 GPM | 142.3 LPM |
| Hydraulic Capacity | 12.0 gal | 45.4 L |
Engine Specs
| Manufacturer | FPT |
| Model | F5B FL413 E*B002 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Final (SCR) |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | 22.0 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 90.0 HP | 67.1 kW |
| Net Power | 84.0 HP | 62.6 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 282 ft-lb | 383.0 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.2 gal | 8.5 L |
| Fuel Tank Capacity | 25.5 gal | 96.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 78.8 in. | 200.2 cm |
| Bucket Hinge Pin | 130.0 in. | 330.2 cm |
| Width | 69.6 in. | 176.8 cm |
| Length | 148.0 in. | 375.9 cm |
| Dump Height | 100.8 in. | 256.0 cm |
| Dump Reach | 26.9 in. | 68.3 cm |
| Ground Clearance | 9.4 in. | 23.9 cm |
| Dump Angle | 46.7° |
| Rollback Angle | 35.0° |
| Departure Angle | 26.5° |
