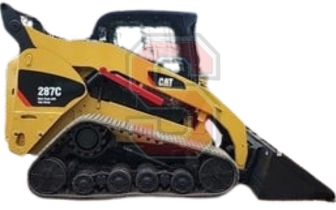

| Manufacturer | Caterpillar |
| Model | 287C |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2007-2015 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 84.0 HP | 62.6 kW |
| Lifting Capacity (35% Tipping) | 2709 lbs | 1229.4 kg |
| Lifting Capacity (50% Tipping) | 3800 lbs | 1726.8 kg |
| Operating Weight | 9958 lbs | 4516.9 kg |
| Tipping Load | 7743 lbs | 3512.3 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | 7308 lbs | 3314.9 kg |
| Max. Travel Speed | 5.6 mph | 9.0 km |
| Optional High Speed | 9.3 mph | 14.9 km |
| Ground Pressure | 3.9 psi | 26.9 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 22.0 GPM | 83.3 LPM |
| Relief Pressure | 3335 psi | 230.0 Bar |
| High Flow – XPS | 33.0 GPM | 125.0 LPM |
| Hydraulic Capacity | 15.0 gal | 56.8 L |
Engine Specs
| Manufacturer | Cat |
| Model | C3.4 DIT |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 3 Compliant |
| Rated Speed | 2500 RPM |
| Torque Power | 1600 RPM |
| Combustion | Indirect injection |
| Compression Ratio | 22:1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 84.0 HP | 62.6 kW |
| Net Power | 82.0 HP | 61.1 kW |
| Displacement | 201 cu in. | 3294 cc |
| Bore | 3.7 in. | 9.4 cm |
| Stroke | 4.7 in. | 12.0 cm |
| Peak Torque | 148 ft-lb | 200.6 N∙m |
| Coolant Capacity | 3.7 gal | 14.0 L |
| Engine Oil Capacity | 2.6 gal | 9.8 L |
| Fuel Tank Capacity | 26.0 gal | 98.4 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 83.2 in. | 211.5 cm |
| Bucket Hinge Pin | 127.3 in. | 323.3 cm |
| Width | 78.0 in. | 198.1 cm |
| Length | 145.4 in. | 369.2 cm |
| Dump Height | 96.5 in. | 245.0 cm |
| Dump Reach | 30.9 in. | 78.4 cm |
| Ground Clearance | 8.8 in. | 22.5 cm |
| Dump Angle | 50° |
| Rollback Angle | |
| Departure Angle | 42° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 18.0 in. | 45.7 cm |
| Track Length | 117.2 in. | 297.4 cm |
| Ground Contact Length | 71.2 in. | 180.8 cm |
