| Manufacturer | Caterpillar |

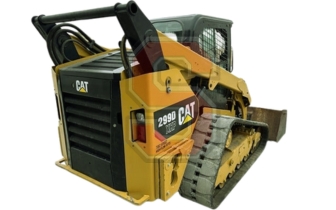

| Model | Cat 299D-XHP |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2012-2019 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 110.0 HP | 82.0 kW |
| Lifting Capacity (35% Tipping) | 3185 lbs | 1444.7 kg |
| Lifting Capacity (50% Tipping) | 4550 lbs | 2063.8 kg |
| Operating Weight | 11647 lbs | 5283.0 kg |
| Tipping Load | 9100 lbs | 4127.7 kg |
| Lift Breakout Force | 6100 lbs | 2767.9 kg |
| Tilt Breakout Force | 7270 lbs | 3297.6 kg |
| Max. Travel Speed | 5.0 mph | 8.1 km |
| Optional High Speed | 8.5 mph | 13.6 km |
| Ground Pressure | 5.3 psi | 36.8 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 23.0 GPM | 87.1 LPM |
| Relief Pressure | 3335 psi | 230.0 Bar |
| High Flow – XPS | 40.0 GPM | 151.4 LPm |
| Hydraulic Capacity | 16.0 gal | 60.6 L |
Engine Specs
| Manufacturer | Cat |
| Model | C3.8 turbo |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Interim/EU Stage IIIB |
| Rated Speed | 2400 RPM |
| Torque Power | 1500 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 110.0 HP | 82.0 kW |
| Net Power | 106.0 HP | 79.0 kW |
| Displacement | 232 cu in. | 3801.8 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.7 in. | 11.9 cm |
| Peak Torque | 276 ft-lb | 374 N∙m |
| Coolant Capacity | 3.7 gal | 14.0 L |
| Engine Oil Capacity | 2.6 gal | 9.8 L |
| Fuel Tank Capacity | 30.8 gal | 116.6 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 82.8 in. | 210.4 cm |
| Bucket Hinge Pin | 126.6 in. | 321.7 cm |
| Width | 76.0 in. | 193.1 cm |
| Length | 151.6 in. | 385.0 cm |
| Dump Height | 95.2 in. | 241.8 cm |
| Dump Reach | 31.0 in. | 78.7 cm |
| Ground Clearance | 9.1 in. | 23.1 cm |
| Dump Angle | 52° |
| Rollback Angle | |
| Departure Angle | 39° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 15.7 in. | 39.9 cm |
| Track Length | 123.5 in. | 313.8 cm |
| Ground Contact Length | 69.6 in. | 176.8 cm |
