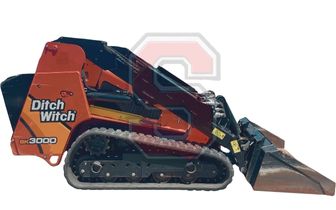

| Manufacturer | Ditch Witch |
| Model | SK3000 |
| Type | Mini skid steer |
| Lift Design | Vertical |
| Years Made | 2020-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 58.9 HP | 43.9 kW |
| Lifting Capacity (35% Tipping) | 3102 lbs | 1407.0 kg |
| Lifting Capacity (50% Tipping) | 4430 lbs | 2009.4 kg |
| Operating Weight | 7600 lbs | 3447.2 kg |
| Tipping Load | 8863 lbs | 4020.1 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 5.8 mph | 9.3 km |
| Ground Pressure | 5.8 psi | 39.9 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 22.2 GPM | 84.0 LPM |
| Relief Pressure | 5366 psi | 370.0 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 21.1 gal | 79.9 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV86CT |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 3000 RPM |
| Torque Power | |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 58.9 HP | 43.9 kW |
| Net Power | 56.7 HP | 42.3 kW |
| Displacement | 127.5 cu in. | 2089 cc |
| Bore | 3.39 in. | 8.6 cm |
| Stroke | 3.5 in. | 9.0 cm |
| Peak Torque | ||
| Coolant Capacity | 1.3 gal | 4.8 L |
| Engine Oil Capacity | 1.2 gal | 4.7 L |
| Fuel Tank Capacity | 10.5 gal | 39.7 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 65.0 in. | 164.1 cm |
| Bucket Hinge Pin | 118.0 in. | 299.7 cm |
| Width | 57.5 in. | 146.1 cm |
| Length | 138.0 in. | 349.5 cm |
| Dump Height | 88.5 in. | 224.8 cm |
| Dump Reach | 35.4 in. | 89.9 cm |
| Ground Clearance | 8.1 in. | 20.6 cm |
| Dump Angle | 47° |
| Rollback Angle | 30° |
| Departure Angle | 27.3° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 12.5 in. | 32.0 cm |
| Track Length | 107.0 in. | 271.3 cm |
| Ground Contact Length | 51.5 in. | 130.8 cm |
