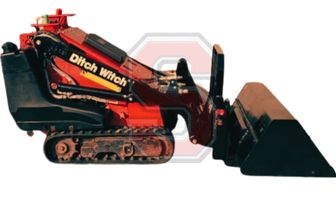

| Manufacturer | Ditch Witch |
| Model | SK350 |
| Type | Mini skid steer |
| Lift Design | Vertical |
| Years Made | 2004-2015 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 20.0 HP | 14.9 kW |
| Lifting Capacity (35% Tipping) | 350 lbs | 158.2 kg |
| Lifting Capacity (50% Tipping) | 420 lbs | 190.5 kg |
| Operating Weight | 1660 lbs | 752.9 kg |
| Tipping Load | 1030 lbs | 467.2 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 3.0 mph | 4.8 km |
| Ground Pressure | 4.0 psi | 28.0 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 12.0 GPM | 45.4 LPM |
| Relief Pressure | 2300 psi | 158.6 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 7.0 gal | 26.5 L |
Engine Specs
| Manufacturer | Kohler |
| Model | Ch20 |
| Type | Gasoline |
| Cylinders | 2 |
| Emissions | Tier 3 |
| Rated Speed | 3600 RPM |
| Torque Power | 1200 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order |
| US | Metric | |
|---|---|---|
| Gross Power | 20.0 HP | 14.9 kW |
| Net Power | 20.0 HP | 14.9 kW |
| Displacement | 38 cu in. | 624 cc |
| Bore | 3.0 in. | 7.7 cm |
| Stroke | 2.6 in. | 6.7 cm |
| Peak Torque | 39 ft-lb | 53 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 0.5 gal | 1.9 L |
| Fuel Tank Capacity | 7.5 gal | 28.4 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 42.5 in. | 108.0 cm |
| Bucket Hinge Pin | 70.4 in. | 178.8 cm |
| Width | 35.1 in. | 89.2 cm |
| Length | 58.2 in. | 147.8 cm |
| Dump Height | ||
| Dump Reach | ||
| Ground Clearance | 4.0 in. | 10.1 cm |
| Dump Angle | |
| Rollback Angle | |
| Departure Angle | 18° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 7.0 in. | 18.0 cm |
| Track Length | 30.0 in. | 76.2 cm |
| Ground Contact Length |
