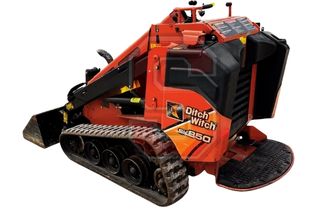

| Manufacturer | Ditch Witch |
| Model | SK850 |
| Type | Mini skid steer |
| Lift Design | Vertical |
| Years Made | 2016-2019 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 37.0 HP | 27.6 kW |
| Lifting Capacity (35% Tipping) | 860 lbs | 390.1 kg |
| Lifting Capacity (50% Tipping) | 1230 lbs | 557.9 kg |
| Operating Weight | 3100 lbs | 1406.1 kg |
| Tipping Load | 2465 lbs | 1118.1 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 4.7 mph | 7.6 km |
| Ground Pressure | 5.5 psi | 37.9 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 15.0 GPM | 56.8 LPM |
| Relief Pressure | 3625 psi | 250.0 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 9.2 gal | 34.8 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 3TNV80FT-ZMDT |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | Tier 4 |
| Rated Speed | 3000 RPM |
| Torque Power | |
| Combustion | Special swirl type |
| Compression Ratio | 22.3(Effective 20.6) |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 37.0 HP | 27.6 kW |
| Net Power | ||
| Displacement | 100.1 cu in. | 1640 cc |
| Bore | 3.5 in. | 8.8 cm |
| Stroke | 3.5 in. | 9.0 cm |
| Peak Torque | ||
| Coolant Capacity | 0.9 gal | 3.4 L |
| Engine Oil Capacity | 1.2 gal | 4.7 L |
| Fuel Tank Capacity | 10.5 gal | 39.7 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 57.0 in. | 145.0 cm |
| Bucket Hinge Pin | 83.0 in. | 210.8 cm |
| Width | 42.0 in. | 106.5 cm |
| Length | 105.0 in. | 167.0 cm |
| Dump Height | ||
| Dump Reach | ||
| Ground Clearance | 3.7 in. | 12.4 cm |
| Dump Angle | 35° |
| Rollback Angle | 25° |
| Departure Angle | 27° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 7.0 in. | 18.0 cm |
| Track Length | 86.0 in. | 219.0 cm |
| Ground Contact Length | 43.0 in. | 109.2 cm |
