Lift path is not a marketing line. It is how the arms move through space and how your bucket or forks behave at every inch of the stroke. This expanded guide explains what is the difference between radial and vertical lift skid steer, how geometry changes real jobs, where each path shines, where it costs you, and how to choose with confidence using field tests, not brochure talk.

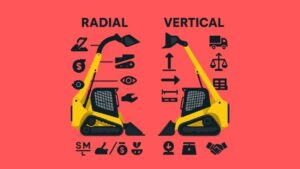

What is the difference in geometry and use cases
Radial lift uses a primary pivot and link set that moves the attachment plate along a simple arc. As the arms rise, the plate travels forward and up. Vertical lift adds bellcranks and link bars that redirect the arc. The plate rides up close to the cab for most of the stroke and projects forward near the top so you gain reach at dump height. That mechanical difference changes balance, sightlines, and how easy it is to place material at height.
- Choose radial when most work happens below chest height. Digging, grading, trench backfill, brush cutting, seedbed prep, and broom work are its comfort zone.
- Choose vertical when forks, truck loading, dumpsters, and stacking are routine. You get calmer rollback through the rise and cleaner dump over tall rails.
Geometry is a system. Arms, link bars, cylinder leverage, wheelbase, and ballast all interact. Do not isolate a single spec line without checking how the whole machine behaves in your cycles.
Loading trucks pallets and reach at height
Vertical lift was built for this. As you climb toward full height, the load stays tucked in. At dump, the linkage projects the plate forward so your bucket lip clears the rail. You spill less down the truck side and operators make fewer recovery scoops. With forks, vertical lift maintains better rollback angle near the top so boxes ride flatter as you place them.
Radial lift can load trucks all day if the rail is moderate. You time your curl earlier in the rise so you do not run out of rollback at the top. On tall box sides, you will feel the bucket travel forward as you lift. That is the point where a vertical machine saves motions and stress. If your week is a stack of pallet runs and high trailers, there is little debate. Vertical will make the day easier.
Grading digging and visibility around the arms
Radial lift earns loyalty in dirt. Mid stroke breakout is strong because the cylinder leverage is in your favor near the pile. The arm stack is simpler and can feel slimmer at the cab posts, which helps you see edges while backdragging or feathering cuts. The arc is predictable. Many operators describe the feel as honest. You point the cutting edge and the machine tells the truth through the joystick.
Vertical lift grades well especially with a six way blade or a laser box. You may feel a bit more mass in the linkage when bouncing across rough pads. Side sightlines can be a touch busier on some models. None of that blocks production. It simply explains why crews that live on the ground side of work often keep a radial in the yard even if the fleet shifted to vertical for fork heavy jobs.
What are the disadvantages of a vertical lift
Added weight and price
Extra bellcranks and bars add pounds and cost. You may need a heavier trailer compared with a similar ROC radial machine.
More pins and bushings
More joints mean more greasing and more places for play to begin. Ignore grease and you earn bucket chatter at height.
Busier cab posts on some models
Vertical towers can crowd side glass. Mirrors and cameras reduce the impact. A low profile bucket restores forward view.
Service complexity
Arm safeties, prop rods, and setup steps matter. Plan the service bay and time windows accordingly.
If you live with pallets and tall rails, the benefits outweigh these costs. Just budget for grease and keep a bushing kit on the shelf.
Which is better tracked or wheeled skid steer
Undercarriage choice sits next to lift path on the decision tree, and surfaces decide this faster than any ad campaign. Wheels move faster on pavement and cost less to run. Tracks float on mud, lawns, and soft pads and keep the bucket calmer near the pile. You can pair either undercarriage with either path.
When wheels win
- Pavement and hard yards with long travel moves
- Lower undercarriage cost and simpler daily checks
- Less scuffing if operators use arcs not pivots
When tracks win
- Soft ground, turf, and wet seasons
- Calmer bucket near piles and piles on unstable pads
- Lower ground pressure for paver safe work
What is the 70 30 rule skid steer
The 70 30 rule is a sanity check for purchasing. Match seventy percent of your everyday tasks and accept that thirty percent of peak work will not be perfect. You can rent for the outliers. You should not overbuy for them.
Match 70 percent everyday tasks and 30 percent peak jobs
- If most cycles are forks and tall rails, vertical is the correct default. You save motions and avoid dribble rework.
- If most cycles are cut, carry, backdrag, and seedbed, radial feels right and costs less to maintain.
- If you are truly split, buy the geometry that prevents your most expensive mistake. That could be truck side spills or wavy pads.
Spec lines that predict performance without surprises
| Spec | What it predicts | Field way to verify |
|---|---|---|
| Hinge pin height | Rail clearance potential | Measure with your bucket installed and a pallet in the bucket for realistic stance |
| Dump reach at full height | Clean dumps over tall rails | Back the machine one foot from a rail mockup and dump a heaped bucket five times |
| Rollback at height | Fork safety and material retention while rising | Place a water tote at second bay height and check fork angle during approach |
| Breakout force | Peel and fill behavior at mid height | Time three fills from the same stockpile face with equal operators |
| ROC and operating weight | Safe lift and trailer planning | Weigh the machine with full fuel and your common attachment |
Two more keys matter. Wheelbase influences ride across chatter. Cooling package size and fan strategy decide whether production holds at 3 PM in summer. Look for machines that keep the fan out of the red zone after five continuous heavy cycles.
Spec myths and how to reality check them
Myth 1 bigger hinge pin height always loads better
Not if dump reach at height is short. You clear the rail but the spill falls on the outside panel. Always pair hinge pin height with reach numbers and a real dump test.
Myth 2 vertical cannot grade cleanly
Modern vertical machines grade very well. Sloppy grading comes from bucket setup and operator rhythm more than from path geometry.
Myth 3 radial cannot run forks safely at height
Radial runs forks daily on low rails and standard racks. The penalty shows up at the very top of travel. Judge by your real shelf heights.
Myth 4 path decides everything
Dealer support, cooling, visibility, and trailer limits often decide more. A great machine with weak parts support is a bad business choice.
Operator feel stability and cycle quality
Cycle quality is your profit. It depends on how confidently an operator strings motions together without rework. That comes from stability, sightlines, and predictable linkage behavior.
- Vertical stays calmer near full height and inspires confidence with pallets and high dumps.
- Radial feels planted in mid stroke curls and backdrags where touch matters most.
- Either path benefits from low profile buckets, tall fork backrests, LED lighting, and a rear camera in crowded yards.
Attachment behavior by lift zone
Lives at ground or mid stroke
- Trencher steady pull under chest height works well with radial
- Auger two inch hex drilling fences and piers suits either path
- Brush cutter smoother feed with radial feel but either path runs it fine
Lives near full height
- Forks to racking and tall truck beds favor vertical rollback at height
- Pickup broom dumping into high boxes favors vertical reach at height
- Snow blower throwing into trucks appreciates vertical stability near top
Insensitive to path
- Six way blade and laser box depend more on grade control than lift path
- Soil conditioner drum height is low and geometry is secondary
- Cold planer needs flow and cooling more than path preference
A five lap test loop to pick the right machine
Bring your bucket and forks. Bring your crew. One hour on a marked course answers what a week of reading will not.
- Dump test height and reach set a mock rail at your tallest box side. Heaped bucket. Five dumps. Count dribbles and corrections.
- Fork test place and pull place a pallet at your highest shelf then pull it down. Watch rollback angle and operator posture.
- Breakout and fill set two equal faces in a stockpile. Three fills each. Time the cycles and note how clean the face looks after the third pass.
- Backdrag finish set a 30 foot pad with two high and low spots. Backdrag to flat. Drop a straight edge and measure the daylight.
- Heat check run five continuous heavy cycles then check fan behavior and any performance fade with hot oil.
Swap operators and repeat. You are not only buying a machine. You are buying how quickly new hires get clean work out of it.
Ownership cost service access and resale
Service access
Radial has fewer joints and can be simpler around arm pivots. Vertical adds bellcranks that need grease and inspection. Both demand clean cores and clean couplers every shift.
Parts and dealer metrics
Ask for first time fill rate, average field tech response, and loaner policy. Those numbers decide uptime more than a five percent spec edge.
Real job scenarios and decision playbooks
Concrete subcontractor with forklifts and dump trailers
Daily cycles include palletized forms, rebar bundles, and loading short dump trailers. Trailer rails are moderate. Vertical brings comfort with pallets. Radial would load the trailers fine and cost less to own. The 70 30 rule says vertical if pallets represent more revenue hours than trailer loading. If not, radial could win on total cost.
Landscape contractor with mixed residential sites
Backyards, seedbeds, brush edges, small walls, and mulch. Radial on wheels or on tracks is easy to recommend. If the crew also unloads tall racks weekly at the yard, consider a vertical for the yard and a radial in the field.
Municipal crew with snow program and transfer loading
Winter requires stacking snow and loading into trucks at night. Vertical on tracks or wheels with strong lighting and heated cab makes shifts smoother. In summer, brooms and buckets still feel fine on vertical machines.
Utility contractor trench support and restoration
Long days at ground level. Radial on wheels with over the tire tracks in wet months covers routes cheaply. Fork work happens but not at the top of stroke. Radial is the calmest fit.
Wear patterns inspection and greasing rhythm
Radial watch list
- Arm pivot bushings and coupler pins for play
- Bucket quick attach faces for wear steps that create chatter
- Chain case oil levels on wheeled machines and hub seals
Vertical watch list
- Bellcrank bushings for dry spots and uneven wear
- Link bar bolts for torque and any elongated holes
- Grease paths clear and not packed with dust
Shared habits
- Clean coolers daily in mowing, broom, and milling seasons
- Wipe and cap flat face couplers every swap
- Track tension weekly and after temperature swings
Most repairs trace back to heat and contamination. Clean air through cores and clean oil through couplers are the two habits that protect every dollar you spent on either lift path.
Training tips so crews switch paths without drama
- Explain the path behavior with cones. Have operators raise and dump next to a cone to see forward arc versus vertical projection.
- Teach the fork triangle. Fork height, tilt, and travel speed must stay in a safe window. Vertical helps. Bad habits still tip pallets.
- Use ISO controls and response tuning to ease new hires in. Slow start maps let crews build finesse across the first week.
- Record two minutes of work from ground level and review as a team. Operators correct backdrag posture faster when they watch themselves.
FAQ
What is the difference between radial and vertical lift skid steer?
Radial follows an arc that favors mid stroke power and ground work. Vertical redirects the arc to stay close during rise and project forward at the top for better reach and control at height.
Does vertical always load trucks better?
Vertical usually dumps cleaner over tall rails because reach at height is better. On short rails both paths load well. Test with your bucket and truck height.
What are the disadvantages of a vertical lift?
More parts to grease, a little more weight and cost, and slightly busier cab posts on some models. In return you get better behavior at the top of travel.
Which is better tracked or wheeled skid steer?
Wheels for pavement and hard yards. Tracks for soft ground and turf. Choose undercarriage by surfaces. Choose lift path by job mix.
What is the 70 30 rule skid steer?
Buy for the seventy percent of tasks you do every week. Accept tradeoffs on the thirty percent peaks. Rent for outliers so you do not overbuy.
Is radial outdated for modern jobs?
No. Radial remains excellent for grading, trench support, brush cutting, and seedbed work. Many fleets keep one even after adding vertical units.
Can a radial machine safely place pallets high on racks?
Yes within rated height and weight. You will manage rollback angle more actively near the top. If racks are tall daily, vertical is easier.
Does lift path affect attachment compatibility?
Flow and pressure decide compatibility. Lift path decides how the head feels through the stroke. Match by where the head operates most of the time.
How do I test machines before buying?
Run the five lap loop. Dump over a tall rail, place pallets high, time mid height fills, backdrag a pad, and watch heat behavior with hot oil.
What single habit extends life on both paths?
Clean coolers and clean couplers every shift. Those two actions reduce heat and contamination which cause most failures long before geometry does.
