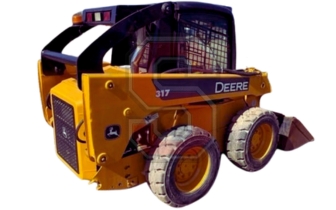

| Manufacturer | John Deere |
| Model | 317 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2005-2009 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 61.0 HP | 45.5 kW |
| Lifting Capacity (35% Tipping) | 1230 lbs | 557.9 kg |
| Lifting Capacity (50% Tipping) | 1750 lbs | 793.8 kg |
| Operating Weight | 6300 lbs | 2857.6 kg |
| Tipping Load | 3700 lbs | 1678.3 kg |
| Lift Breakout Force | 3100 lbs | 1406.1 kg |
| Tilt Breakout Force | 5500 lbs | 2494.8 kg |
| Max. Travel Speed | 6.8 mph | 10.9 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 17.0 GPM | 64.3 LPM |
| Relief Pressure | 3450 psi | 237.9 Bar |
| Optional Flow | 27.0 GPM | 102.2 LPM |
| Hydraulic Capacity | 5.0 gal | 18.9 L |
Engine Specs
| Manufacturer | John Deere |
| Model | 4024T |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 2 |
| Rated Speed | 2800 RPM |
| Torque Power | 1950 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.2:1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 66.0 HP | 49.2 kW |
| Net Power | 62.0 HP | 46.2 kW |
| Displacement | 149 cu in. | 2441 cc |
| Bore | 3.1 in. | 8.6 cm |
| Stroke | 4.4 in. | 10.5 cm |
| Peak Torque | 140 ft-lb | 190 N∙m |
| Coolant Capacity | 1.6 gal | 6.6 L |
| Engine Oil Capacity | 2.4 gal | 9.0 L |
| Fuel Tank Capacity | 16.0 gal | 60.6 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 77.0 in. | 192 cm |
| Bucket Hinge Pin | 114.2 in. | 290 cm |
| Width | 63.0 in. | 160 cm |
| Length | 126.0 in. | 320 cm |
| Dump Height | 89.0 in. | 226.0 cm |
| Dump Reach | 29.1 in. | 73.9 cm |
| Ground Clearance | 8.2 in. | 20.8 cm |
| Dump Angle | 45° |
| Rollback Angle | 35° |
| Departure Angle | 27° |
