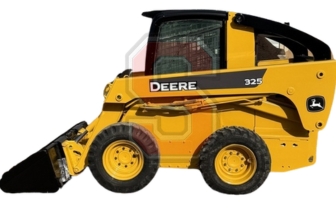

| Manufacturer | John Deere |
| Model | 325 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2005-2009 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 76.0 HP | 56.7 kW |
| Lifting Capacity (35% Tipping) | 1700 lbs | 771.1 kg |
| Lifting Capacity (50% Tipping) | 2500 lbs | 1134.0 kg |
| Operating Weight | 8390 lbs | 3809.2 kg |
| Tipping Load | 5000 lbs | 2268.0 kg |
| Lift Breakout Force | 4800 lbs | 2177.2 kg |
| Tilt Breakout Force | 7500 lbs | 3401.9 kg |
| Max. Travel Speed | 6.0 mph | 9.7 km |
| Optional High Speed | 11.0 mph | 17.7 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 22.0 GPM | 83.3 LPM |
| Relief Pressure | 3100 psi | 213.7 Bar |
| Optional Flow | 34.0 GPM | 128.7 LPM |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | John Deere |
| Model | 5030T |
| Type | Diesel |
| Cylinders | 5 |
| Emissions | Tier 2 |
| Rated Speed | 2800 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.2:1 |
| Firing Order | 1-2-4-5-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 76.0 HP | 56.7 kW |
| Net Power | 70.0 HP | 51.9 kW |
| Displacement | 186 cu in. | 30448 cc |
| Bore | 3.4 in. | 8.6 cm |
| Stroke | 4.1 in. | 10.5 cm |
| Peak Torque | 221 ft-lb | 300 N∙m |
| Coolant Capacity | 2.5 gal | 9.5 L |
| Engine Oil Capacity | 3.1 gal | 11.8 L |
| Fuel Tank Capacity | 24.0 gal | 90.8 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 80.7 in. | 205 cm |
| Bucket Hinge Pin | 125.2 in. | 318 cm |
| Width | 72.7 in. | 187 cm |
| Length | 138.6 in. | 352 cm |
| Dump Height | 100.0 in. | 254 cm |
| Dump Reach | 34.0 in. | 86.4 cm |
| Ground Clearance | 9.0 in. | 22.9 cm |
| Dump Angle | 45° |
| Rollback Angle | 35° |
| Departure Angle | 27° |
