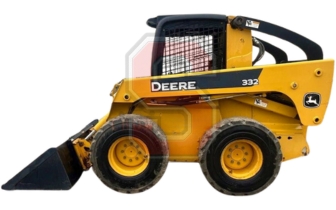

| Manufacturer | John Deere |
| Model | 332 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2005-2009 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 91.0 HP | 67.9 kW |
| Lifting Capacity (35% Tipping) | 2470 lbs | 1120.4 kg |
| Lifting Capacity (50% Tipping) | 3175 lbs | 1440.2 kg |
| Operating Weight | 9160 lbs | 4159.4 kg |
| Tipping Load | 6350 lbs | 2880.3 kg |
| Lift Breakout Force | 6650 lbs | 3019.1 kg |
| Tilt Breakout Force | 11600 lbs | 5266.3 kg |
| Max. Travel Speed | 6.6 mph | 10.6 km |
| Optional High Speed | 11.2 mph | 11.2 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.0 GPM | 91.2 LPM |
| Relief Pressure | 3100 psi | 213.7 Bar |
| Optional Flow | 41.0 GPM | 155.3 LPM |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | John Deere |
| Model | 5030HW |
| Type | Diesel |
| Cylinders | 5 |
| Emissions | Tier 2 |
| Rated Speed | 2800 RPM |
| Torque Power | 1500 RPM |
| Combustion | Direct injection |
| Compression Ratio | 19.1:1 |
| Firing Order | 1-2-4-5-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 91.0 HP | 67.9 kW |
| Net Power | 85.0 HP | 63.4 kW |
| Displacement | 186 cu in. | 30448 cc |
| Bore | 3.4 in. | 8.6 cm |
| Stroke | 4.1 in. | 10.5 cm |
| Peak Torque | ||
| Coolant Capacity | 3.4 gal | 12.9 L |
| Engine Oil Capacity | 3.1 gal | 11.8 L |
| Fuel Tank Capacity | 24.0 gal | 90.8 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 83.1 in. | 211 cm |
| Bucket Hinge Pin | 127.2 in. | 323 cm |
| Width | 75.5 in. | 196 cm |
| Length | 138.6 in. | 352 cm |
| Dump Height | 101.9 in. | 259 cm |
| Dump Reach | 32.0 in. | 81.2 cm |
| Ground Clearance | 9.5 in. | 24.1 cm |
| Dump Angle | 45° |
| Rollback Angle | 35° |
| Departure Angle | 27° |
