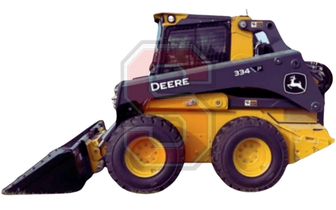

| Manufacturer | John Deere |
| Model | 334P-TIER |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2024-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 118.0 HP | 88.0 kW |
| Lifting Capacity (35% Tipping) | 2800 lbs | 1270 kg |
| Lifting Capacity (50% Tipping) | 4000 lbs | 1816 kg |
| Operating Weight | 10264 lbs | 4656 kg |
| Tipping Load | 8000 lbs | 3629 kg |
| Lift Breakout Force | 8500 lbs | 3859 kg |
| Tilt Breakout Force | 13800 lbs | 6265 kg |
| Max. Travel Speed | 12.0 mph | 19.3 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 25.0 GPM | 94.6 LPM |
| Relief Pressure | 3450 psi | 237.9 Bar |
| Optional Flow | 44.0 GPM | 166.6 LPM |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV94FHT |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4F/Stage V |
| Rated Speed | 2500 RPM |
| Torque Power | 1700 RPM |
| Combustion | Direct injection |
| Compression Ratio | 17.6 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 118.0 HP | 88.0 kW |
| Net Power | 114.7 HP | 85.5 kW |
| Displacement | 186.3 cu in. | 3054 cc |
| Bore | 3.7 in. | 9.4 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 291 ft-lb | 395 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 35.5 gal | 134.4 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 87.0 in. | 221.0 cm |
| Bucket Hinge Pin | 132.0 in. | 335.3 cm |
| Width | 78.5 in. | 199.4 cm |
| Length | 150.7 in. | 383.0 cm |
| Dump Height | 106.7 in. | 271.0 cm |
| Dump Reach | 31.9 in. | 81.0 cm |
| Ground Clearance | 9.7 in. | 24.6 cm |
| Dump Angle | 48° |
| Rollback Angle | 35° |
| Departure Angle | 23.5° |
