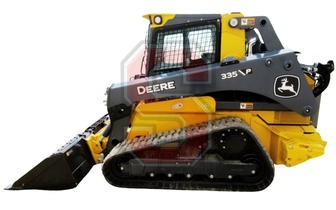

| Manufacturer | John Deere |
| Model | 335P-TIER |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2024-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 118.0 HP | 88.0 kW |
| Lifting Capacity (35% Tipping) | 4025 lbs | 1827 kg |
| Lifting Capacity (50% Tipping) | 5750 lbs | 2611 kg |
| Operating Weight | 12300 lbs | 4656 kg |
| Tipping Load | 11500 lbs | 5221 kg |
| Lift Breakout Force | 8500 lbs | 3859 kg |
| Tilt Breakout Force | 13800 lbs | 6265 kg |
| Max. Travel Speed | 8.5 mph | 13.7 km |
| Ground Pressure | 4.8 psi | 32.8 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 25.0 GPM | 94.6 LPM |
| Relief Pressure | 3500 psi | 241.3 Bar |
| Optional Flow | 44.0 GPM | 166.6 LPM |
| Hydraulic Capacity |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV94FHT |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4F/Stage V |
| Rated Speed | 2500 RPM |
| Torque Power | 1700 RPM |
| Combustion | Direct injection |
| Compression Ratio | 17.6 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 118.0 HP | 88.0 kW |
| Net Power | 114.7 HP | 85.5 kW |
| Displacement | 186.3 cu in. | 3054 cc |
| Bore | 3.7 in. | 9.4 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 291 ft-lb | 395 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 36.0 gal | 136.3 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 87.4 in. | 222.0 cm |
| Bucket Hinge Pin | 132.0 in. | 335.3 cm |
| Width | 80.7 in. | 205.0 cm |
| Length | 151.2 in. | 384.0 cm |
| Dump Height | 106.1 in. | 269.5 cm |
| Dump Reach | 29.0 in. | 73.7 cm |
| Ground Clearance | 9.8 in. | 24.9 cm |
| Dump Angle | 48° |
| Rollback Angle | 35° |
| Departure Angle | 24.7° |
Tire Size
| US | Metric | |
|---|---|---|
| Track Width | 17.7 in. | 45.0 cm |
| Track Length | 125.0 in. | 317.5 cm |
| Ground Contact Length |
