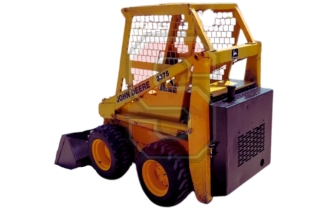

| Manufacturer | John Deere |
| Model | 3375 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 1994-1998 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 19.0 HP | 14.1 kW |
| Lifting Capacity (35% Tipping) | ||
| Lifting Capacity (50% Tipping) | 675 lbs | 306 kg |
| Operating Weight | 2200 lbs | 998 kg |
| Tipping Load | 1365 lbs | 619 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | 1409 lbs | 639 kg |
| Max. Travel Speed | 5.8 mph | 9.3 km |
Cycle Time
| Raise Lift Arms | 5.5 sec. |
| Lower Lift Arms | 3.4 sec. |
| Bucket Rollback | 1.9 sec. |
| Bucket Dump | 0.9 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 8.0 GPM | 30.2 LPM |
| Relief Pressure | 1600 psi | 110.3 Bar |
| Optional Flow | N/A | – |
| Hydraulic Capacity | 9.0 gal | 33.9 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 3TN66 |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | N/A |
| Rated Speed | 3400 RPM |
| Torque Power | |
| Combustion | |
| Compression Ratio | |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 19.0 HP | 14.1 kW |
| Net Power | 17.0 HP | 12.6 kW |
| Displacement | 41.8 cu in. | 658 cc |
| Bore | 2.6 in. | 6.6 cm |
| Stroke | 2.5 in. | 6.4 cm |
| Peak Torque | ||
| Coolant Capacity | 1.2 gal | 4.4 L |
| Engine Oil Capacity | 0.6 gal | 2.4 L |
| Fuel Tank Capacity | 6.0 gal | 22.7 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 69.0 in. | 175 cm |
| Bucket Hinge Pin | 93.2 in. | 237 cm |
| Width | 36.0 in. | 91 cm |
| Length | 92.5 in. | 235 cm |
| Dump Height | 74.8 in. | 190 cm |
| Dump Reach | 21.0 in. | 53 cm |
| Ground Clearance | 5.5 in. | 14 cm |
| Dump Angle | |
| Rollback Angle | 23° |
| Departure Angle | 21° |
