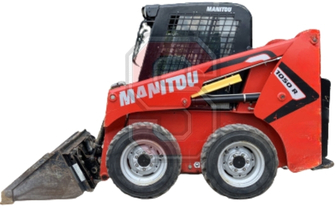

| Manufacturer | Manitou |
| Model | 1050R |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2018-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 34.2 HP | 25.5 kW |
| Lifting Capacity (35% Tipping) | 1050 lbs | 476.3 kg |
| Lifting Capacity (50% Tipping) | 1500 lbs | 680.0 kg |
| Operating Weight | 4450 lbs | 2019 kg |
| Tipping Load | 3000 lbs | 1361 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 5.9 mph | 9.5 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 14.6 GPM | 55.1 LPM |
| Relief Pressure | 2750 psi | 189.6 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 8.0 gal | 30.3 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 3TNV88C-KMSV |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | Tier 4 / Stage 5 |
| Rated Speed | 2800 RPM |
| Torque Power | 1800 RPM |
| Combustion | Direct injection |
| Compression Ratio | 19.1 (Effective 17.2) |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 34.2 HP | 25.5 kW |
| Net Power | 33.81 HP | 24.7 kW |
| Displacement | 95.7 cu in. | 1568 cc |
| Bore | 3.4 in. | 8.6 cm |
| Stroke | 3.5 in. | 9.0 cm |
| Peak Torque | 80 ft-lb | 108 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.9 gal | 10.8 L |
| Fuel Tank Capacity | 10.3 gal | 39.4 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 70.3 in. | 178.6 cm |
| Bucket Hinge Pin | 108.1 in. | 274.6 cm |
| Width | 55.3 in. | 140.4 cm |
| Length | 114.0 in. | 289.6 cm |
| Dump Height | 84.5 in. | 214.6 cm |
| Dump Reach | 22.8 in. | 57.9 cm |
| Ground Clearance | 6.0 in. | 15.2 cm |
| Dump Angle | 42° |
| Rollback Angle | 29° |
| Departure Angle | 26° |
