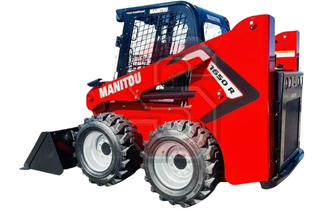

| Manufacturer | Manitou |
| Model | 1650R |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2020-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 69.7 HP | 52.0 kW |
| Lifting Capacity (35% Tipping) | 1200 lbs | 544 kg |
| Lifting Capacity (50% Tipping) | 1649 lbs | 748 kg |
| Operating Weight | 6164 lbs | 2796 kg |
| Tipping Load | 3275 lbs | 1485 kg |
| Lift Breakout Force | 3607 lbs | 1636 kg |
| Tilt Breakout Force | 4591 lbs | 2082 kg |
| Max. Travel Speed | 12.0 mph | 19.3 km |
Cycle Time
| Raise Lift Arms | 3.8 sec. |
| Lower Lift Arms | 2.6 sec. |
| Bucket Rollback | 1.8 sec. |
| Bucket Dump | 2.4 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 18.8 GPM | 71.4 LPM |
| Relief Pressure | 3002 psi | 207 Bar |
| Optional Flow | 30.1 GPM | 114 LPM |
| Hydraulic Capacity | 11.0 gal | 41.6 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV98C-NMS2 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 / Stage 5 |
| Rated Speed | 2800 RPM |
| Torque Power | 1625 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.5 |
| Firing Order | 1-3-4-2-1 |
| US | Metric | |
|---|---|---|
| Gross Power | 69.7 HP | 52.0 kW |
| Net Power | 68.4 HP | 51.0 kW |
| Displacement | 201.4 cu in. | 3300 cc |
| Bore | 3.9 in. | 9.8 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 178 ft-lb | 241 N∙m |
| Coolant Capacity | 3.8 gal | 14.4 L |
| Engine Oil Capacity | 2.2 gal | 8.5 L |
| Fuel Tank Capacity | 17 gal | 64.4 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 77.0 in. | 195.6 cm |
| Bucket Hinge Pin | 119.0 in. | 302.3 cm |
| Width | 63.2 in. | 160.5 cm |
| Length | 122.1 in. | 310.1 cm |
| Dump Height | 93.7 in. | 237.9 cm |
| Dump Reach | 22.8 in. | 57.9 cm |
| Ground Clearance | 6.3 in. | 16.0 cm |
| Dump Angle | 38° |
| Rollback Angle | 28° |
| Departure Angle | 21° |
