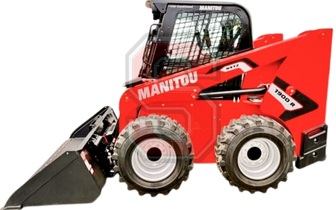

| Manufacturer | Manitou |
| Model | 1900R NXT2 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 69.3 HP | 51.7 kW |
| Lifting Capacity (35% Tipping) | 1330 lbs | 603.3 kg |
| Lifting Capacity (50% Tipping) | 1900 lbs | 861.8 kg |
| Operating Weight | 6995 lbs | 3173.0 kg |
| Tipping Load | 3750 lbs | 1701.0 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 12.0 mph | 19.3 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 19.0 GPM | 71.9 LPM |
| Relief Pressure | 3002 psi | 207.0 Bar |
| Optional Flow | 30.0 GPM | 113.6 LPM |
| Hydraulic Capacity | 9.0 gal | 34.1 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV98C-NMS2V |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 2500 RPM |
| Torque Power | 1625 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.3 (Effective 16.4) |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 69.3 HP | 51.7 kW |
| Net Power | 68.4 HP | 51.0 kW |
| Displacement | 202.6 cu in. | 3318 cc |
| Bore | 3.9 in. | 9.8 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 178 ft-lb | 241.3 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 16.0 gal | 60.6 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 77.0 in. | 195.6 cm |
| Bucket Hinge Pin | 119.0 in. | 302.3 cm |
| Width | 66.0 in. | 167.6 cm |
| Length | 128.0 in. | 325.1 cm |
| Dump Height | 94.0 in. | 238.0 cm |
| Dump Reach | 23.0 in. | 58.4 cm |
| Ground Clearance | 6.0 in. | 15.2 cm |
| Dump Angle | 38° |
| Rollback Angle | 28° |
| Departure Angle | 21° |
