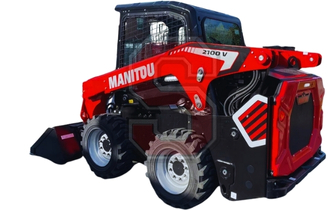

| Manufacturer | Manitou |
| Model | 2100V |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2023-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 69.7 HP | 52.0 kW |
| Lifting Capacity (35% Tipping) | 1520 lbs | 689 kg |
| Lifting Capacity (50% Tipping) | 2099 lbs | 952 kg |
| Operating Weight | 7480 lbs | 3393 kg |
| Tipping Load | 4200 lbs | 1905 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 11.6 mph | 18.7 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 23.0 GPM | 87.1 LPM |
| Relief Pressure | 3046 psi | 210.0 Bar |
| Optional Flow | 30.0 GPM | 113.6 LPM |
| Hydraulic Capacity | 6.0 gal | 22.7 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV98C-NGL |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4F |
| Rated Speed | 2500 RPM |
| Torque Power | 1625 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.3 (Effective 16.4) |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 69.7 HP | 52.0 kW |
| Net Power | 68.4 HP | 51.0 kW |
| Displacement | 202.6 cu in. | 3318 cc |
| Bore | 3.9 in. | 9.8 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 178 ft-lb | 241.3 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 28.0 gal | 106 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 80.0 in. | 203.2 cm |
| Bucket Hinge Pin | 121.0 in. | 307.3 cm |
| Width | 67.0 in. | 169.0 cm |
| Length | 139.5 in. | 354.3 cm |
| Dump Height | 90.0 in. | 228.6 cm |
| Dump Reach | 33.5 in. | 85.1 cm |
| Ground Clearance | 7.5 in. | 19.1 cm |
| Dump Angle | 42° |
| Rollback Angle | |
| Departure Angle | 25° |
