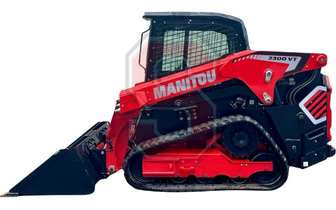

| Manufacturer | Manitou |
| Model | 2300VT |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2023-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 72.0 HP | 53.7 kW |
| Lifting Capacity (35% Tipping) | 2300 lbs | 1043 kg |
| Lifting Capacity (50% Tipping) | 3286 lbs | 1491 kg |
| Operating Weight | 9251 lbs | 4514 kg |
| Tipping Load | 6570 lbs | 2980 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 10.0 mph | 16.1 km |
| Ground Pressure | 6.6 psi | 45.5 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 23.0 GPM | 87.1 LPM |
| Relief Pressure | 3475 psi | 239.6 Bar |
| Optional High Flow | 30.0 GPM | 113.6 LPM |
| Hydraulic Capacity | 6.0 gal | 22.7 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV98CT-XNGL |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 2500 RPM |
| Torque Power | 1800 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.5 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 72.0 HP | 53.7 kW |
| Net Power | 70.7 HP | 52.7 kW |
| Displacement | 202.6 cu in. | 3320 cc |
| Bore | 3.9 in. | 9.8 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 217 ft-lb | 294 N∙m |
| Coolant Capacity | 0.9 gal | 3.4 L |
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 39.0 gal | 147.6 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 81 in. | 206 cm |
| Bucket Hinge Pin | 121 in. | 307 cm |
| Width | 69 in. | 175 cm |
| Length | 141 in. | 358 cm |
| Dump Height | 91 in. | 231 cm |
| Dump Reach | 36 in. | 88 cm |
| Ground Clearance | 8 in. | 20 cm |
| Dump Angle | 42° |
| Rollback Angle | |
| Departure Angle |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Shoe Width | 16.0 in. | 40.0 cm |
| Track Length | 110 in. | 279.4 cm |
| Ground Contact Length |
