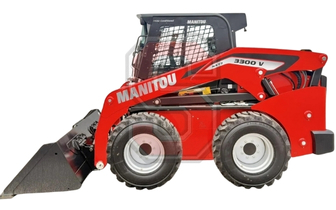

| Manufacturer | Manitou |
| Model | 3300V NXT2 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2018-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 72.0 HP | 53.7 kW |
| Lifting Capacity (35% Tipping) | 2300 lbs | 1043.3kg |
| Lifting Capacity (50% Tipping) | 3300 lbs | 1496.9 kg |
| Operating Weight | 9820 lbs | 4454.2 kg |
| Tipping Load | 6601 lbs | 2994.2 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 8.0 mph | 12.8 km |
| Optional High Speed | 12.0 mph | 19.3 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.0 GPM | 90.8 LPM |
| Relief Pressure | 3450 psi | 238 Bar |
| Optional Flow | 35.0 GPM | 132.5 LPM |
| Hydraulic Capacity | 11.0 gal | 41.6 L |
Engine Specs
| Manufacturer | Yanmar |
| Model | 4TNV98CT-NMS |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 2500 RPM |
| Torque Power | 1625 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.5 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 72.0 HP | 53.7 kW |
| Net Power | 70.7 HP | 52.7 kW |
| Displacement | 202.6 cu in. | 3320 cc |
| Bore | 3.9 in. | 9.8 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 217 ft-lb | 294 N∙m |
| Coolant Capacity | 1.7 gal | 6.4 L |
| Engine Oil Capacity | 2.7 gal | 10.4 L |
| Fuel Tank Capacity | 24.0 gal | 90.8 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 82.1 in. | 208.5 cm |
| Bucket Hinge Pin | 131.2 in. | 333.2 cm |
| Width | 72.0 in. | 182.9 cm |
| Length | 153.6 in. | 390.1 cm |
| Dump Height | 99.0 in. | 251.5 cm |
| Dump Reach | 32.0 in. | 81.3 cm |
| Ground Clearance | 9.0 in. | 22.9 cm |
| Dump Angle | 42° |
| Rollback Angle | 29° |
| Departure Angle | 25° |
