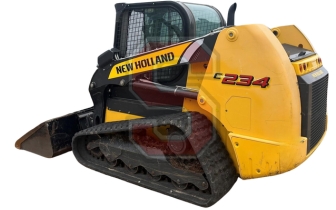

| Manufacturer | New Holland |
| Model | C234 |
| Type | Compact track loader |
| Lift Design | Radial |
| Years Made | 2016-2021 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 90.0 HP | 67.1 kW |
| Lifting Capacity (35% Tipping) | 2380 lbs | 1079.5 kg |
| Lifting Capacity (50% Tipping) | 3400 lbs | 1542.2 kg |
| Operating Weight | 6800 lbs | 3084.4 kg |
| Tipping Load | 7600 lbs | 3447.3 kg |
| Lift Breakout Force | 7760 lbs | 3519.9 kg |
| Tilt Breakout Force | 8700 lbs | 3946.3 kg |
| Max. Travel Speed | 5.1 mph | 8.2 km |
| Optional High Speed | 7.6 mph | 12.2 km |
| Ground Pressure | 4.2 psi | 29.0 kPa |
Cycle Time
| Raise Lift Arms | 4.4 sec. |
| Lower Lift Arms | 2.6 sec. |
| Bucket Rollback | 2.0 sec. |
| Bucket Dump | 2.6 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.5 LPM |
| Relief Pressure | 3046 psi | 210.0 Bar |
| Optional Flow | 37.6 GPM | 142.5 LPM |
| Hydraulic Capacity | 7.7 gal | 29.2 L |
Engine Specs
| Manufacturer | FPT |
| Model | F5BFL413E*B002 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 90.0 HP | 67.1 kW |
| Net Power | 84.0 HP | 62.6 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 282 ft-lb | 383 N∙m |
| Coolant Capacity | 5.0 gal | 18.9 L |
| Engine Oil Capacity | 2.4 gal | 8.9 L |
| Fuel Tank Capacity | 25.5 gal | 96.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 80.4 in. | 204.2 cm |
| Bucket Hinge Pin | 126.5 in. | 321.5 cm |
| Width | 76.0 in. | 193.0 cm |
| Length | 143.5 in. | 364.6 cm |
| Dump Height | 102.4 in. | 260.2 cm |
| Dump Reach | 21.6 in. | 54.8 cm |
| Ground Clearance | 9.5 in. | 24.3 cm |
| Dump Angle | 38.1° |
| Rollback Angle | 29.7° |
| Departure Angle | 32° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 17.7 in. | 45.0 cm |
| Track Length | 118.7 in. | 301.6 cm |
| Ground Contact Length | 64.5 in. | 163.8 cm |
