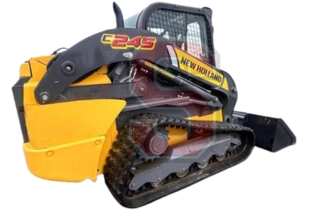

| Manufacturer | New Holland |
| Model | C245 |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2016-2021 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 90.0 HP | 67.1 kW |
| Lifting Capacity (35% Tipping) | 3260 lbs | 1478.1 kg |
| Lifting Capacity (50% Tipping) | 4500 lbs | 2041.2 kg |
| Operating Weight | 10610 lbs | 4812.6 kg |
| Tipping Load | 9000 lbs | 4082.3 kg |
| Lift Breakout Force | 9188 lbs | 4167.6 kg |
| Tilt Breakout Force | 7462 lbs | 3384.7 kg |
| Max. Travel Speed | 5.5 mph | 8.9 km |
| Optional High Speed | 8.0 mph | 12.2 km |
| Ground Pressure | 4.6 psi | 31.7 kPa |
Cycle Time
| Raise Lift Arms | 5.1 sec. |
| Lower Lift Arms | 3.5 sec. |
| Bucket Rollback | 2.0 sec. |
| Bucket Dump | 2.7 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.5 LPM |
| Relief Pressure | 3540 psi | 237.2 Bar |
| Optional Flow | 39.9 GPM | 150.8 LPM |
| Hydraulic Capacity | 12.7 gal | 48.0 L |
Engine Specs
| Manufacturer | FPT |
| Model | F5BFL413E*B002* |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Final |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 90.0 HP | 67.1 kW |
| Net Power | 84.0 HP | 62.6 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 282 ft-lb | 383 N∙m |
| Coolant Capacity | 5.0 gal | 18.9 L |
| Engine Oil Capacity | 2.4 gal | 8.5 L |
| Fuel Tank Capacity | 25.5 gal | 96.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 83.0 in. | 210.8 cm |
| Bucket Hinge Pin | 132.0 in. | 334.2 cm |
| Width | 76.0 in. | 193.0 cm |
| Length | 154.0 in. | 391.1 cm |
| Dump Height | ||
| Dump Reach | 35.5 in. | 90.2 cm |
| Ground Clearance | 9.5 in. | 24.3 cm |
| Dump Angle | 45° |
| Rollback Angle | 31° |
| Departure Angle | 32° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 17.7 in. | 45.0 cm |
| Track Length | 118.7 in. | 301.6 cm |
| Ground Contact Length | 64.5 in. | 163.8 cm |
