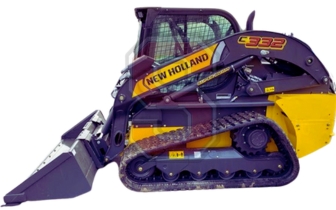

| Manufacturer | New Holland |
| Model | C332 |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2020-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 74.0 HP | 55.2 kW |
| Lifting Capacity (35% Tipping) | 2240 lbs | 1016.0 kg |
| Lifting Capacity (50% Tipping) | 3200 lbs | 1451.5 kg |
| Operating Weight | 9630 lbs | 4368.1 kg |
| Tipping Load | 6400 lbs | 2903.0 kg |
| Lift Breakout Force | 4840 lbs | 2195.4 kg |
| Tilt Breakout Force | 7360 lbs | 3338.4 kg |
| Max. Travel Speed | 5.1 mph | 8.2 km |
| Optional High Speed | 7.6 mph | 12.2 km |
| Ground Pressure | 4.2 psi | 29.0 kPa |
Cycle Time
| Raise Lift Arms | 3.9 sec. |
| Lower Lift Arms | 2.5 sec. |
| Bucket Rollback | 2.0 sec. |
| Bucket Dump | 2.7 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.5 LPM |
| Relief Pressure | 3046 psi | 210.0 Bar |
| Optional Flow | 37.6 GPM | 142.5 LPM |
| Hydraulic Capacity | 8.5 gal | 32.2 L |
Engine Specs
| Manufacturer | FPT |
| Model | FL463A*G001 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Final |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 74.0 HP | 55.2 kW |
| Net Power | 68.0 HP | 50.7 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 232 ft-lb | 314.5 N∙m |
| Coolant Capacity | 5.0 gal | 18.9 L |
| Engine Oil Capacity | 2.2 gal | 8.5 L |
| Fuel Tank Capacity | 25.5 gal | 96.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 80.4 in. | 204.2 cm |
| Bucket Hinge Pin | 131.1 in. | 333.0 cm |
| Width | 76.0 in. | 193.0 cm |
| Length | 142.9 in. | 363.0 cm |
| Dump Height | 104.5 in. | 265.5 cm |
| Dump Reach | 34.4 in. | 87.5 cm |
| Ground Clearance | 9.5 in. | 24.3 cm |
| Dump Angle | 55° |
| Rollback Angle | 33° |
| Departure Angle | 32° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 17.7 in. | 45.0 cm |
| Track Length | 118.9 in. | 302.0 cm |
| Ground Contact Length | 64.5 in. | 163.8 cm |
