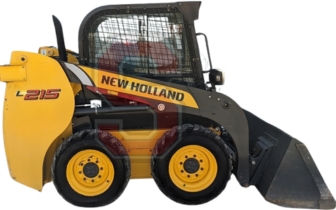

| Manufacturer | New Holland |
| Model | L215 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2011-2015 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 52.0 HP | 38.8 kW |
| Lifting Capacity (35% Tipping) | 1150 lbs | 521.6 kg |
| Lifting Capacity (50% Tipping) | 1500 lbs | 680.4 kg |
| Operating Weight | 5300 lbs | 2404.3 kg |
| Tipping Load | 3000 lbs | 1360.8 kg |
| Lift Breakout Force | 4275 lbs | 1939.1 kg |
| Tilt Breakout Force | 4150 lbs | 1882.4 kg |
| Max. Travel Speed | 6.7 mph | 10.8 km |
| Optional High Speed | N/A |
Cycle Time
| Raise Lift Arms | 3.4 sec. |
| Lower Lift Arms | 2.1 sec. |
| Bucket Rollback | 1.9 sec. |
| Bucket Dump | 1.3 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 15.6 GPM | 59.1 LPM |
| Relief Pressure | 3000 psi | 206.9 Bar |
| High Flow | N/A | |
| Hydraulic Capacity | 4.0 gal | 15.1 L |
Engine Specs
| Manufacturer | ISM |
| Model | N844T |
| Type | Dizel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 2900 RPM |
| Torque Power | 1750 RPM |
| Combustion | Indirect injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 52.0 HP | 38.8 kW |
| Net Power | 49.0 HP | 36.5 kW |
| Displacement | 121.7 cu in. | 1995 cc |
| Bore | 3.3 in. | 8.4 cm |
| Stroke | 3.5 in. | 9.0 cm |
| Peak Torque | 109 ft-lb | 148 N∙m |
| Coolant Capacity | 1.7 gal | 6.3 L |
| Engine Oil Capacity | 1.9 gal | 7.1 L |
| Fuel Tank Capacity | 16.0 gal | 60.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 75.5 in. | 191.9 cm |
| Bucket Hinge Pin | 112.0 in. | 284.5 cm |
| Width | 59.8 in. | 151.8 cm |
| Length | 119.2 in. | 302.8 cm |
| Dump Height | 88.4 in. | 224.6 cm |
| Dump Reach | 18.5 in. | 46.9 cm |
| Ground Clearance | 7.0 in. | 17.8 cm |
| Dump Angle | 40° |
| Rollback Angle | 28° |
| Departure Angle | 22° |
