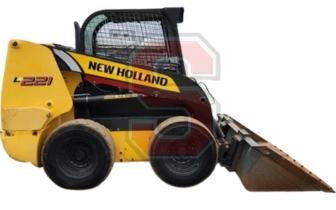

| Manufacturer | New Holland |
| Model | L221 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2015-2019 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 74.0 HP | 55.2 kW |
| Lifting Capacity (35% Tipping) | 1600 lbs | 725.7 kg |
| Lifting Capacity (50% Tipping) | 2100 lbs | 952.5 kg |
| Operating Weight | 6970 lbs | 3160.2 kg |
| Tipping Load | 4000 lbs | 1814.4 kg |
| Lift Breakout Force | 4570 lbs | 2072.9 kg |
| Tilt Breakout Force | 7270 lbs | 3297.6 kg |
| Max. Travel Speed | 7.8 mph | 12.5 km |
| Optional High Speed | 11.4 mph | 18.3 km |
Cycle Time
| Raise Lift Arms | 3.6 sec. |
| Lower Lift Arms | 1.8 sec. |
| Bucket Rollback | 1.7 sec. |
| Bucket Dump | 2.2 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.6 LPM |
| Relief Pressure | 3046 psi | 210.0 Bar |
| Optional Flow | 33.2 GPM | 125.7 LPM |
| Hydraulic Capacity | 8.5 gal | 32.2 L |
Engine Specs
| Manufacturer | FPT |
| Model | F5H FL463A*F001 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4B Final |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct injection |
| Compression Ratio | 17:1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 74.0 HP | 55.2 kW |
| Net Power | 68.0 HP | 50.7 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in. | 9.9 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 232 ft-lb | 314.5 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.5 gal | 9.4 L |
| Fuel Tank Capacity | 19.5 gal | 73.8 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 78.7 in. | 199.8 cm |
| Bucket Hinge Pin | 123.0 in. | 312.4 cm |
| Width | 69.1 in. | 175.5 cm |
| Length | 129.6 in. | 329.2 cm |
| Dump Height | 98.2 in. | 249.5 cm |
| Dump Reach | 20.3 in. | 51.7 cm |
| Ground Clearance | 8.0 in. | 20.3 cm |
| Dump Angle | 40° |
| Rollback Angle | 31° |
| Departure Angle | 25° |
