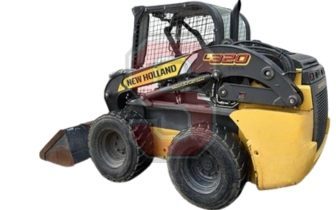

| Manufacturer | New Holland |
| Model | L320 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 2021-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 67.0 HP | 50.0 kW |
| Lifting Capacity (35% Tipping) | 1420 lbs | 644.1 kg |
| Lifting Capacity (50% Tipping) | 2000 lbs | 907.2 kg |
| Operating Weight | 6470 lbs | 2930.1 kg |
| Tipping Load | 4000 lbs | 905.3 kg |
| Lift Breakout Force | 3450 lbs | 1564.9 kg |
| Tilt Breakout Force | 7300 lbs | 3311.2 kg |
| Max. Travel Speed | 7.8 mph | 12.5 km |
| Optional High Speed | 11.4 mph | 18.3 km |
Cycle Time
| Raise Lift Arms | 3.5 sec. |
| Lower Lift Arms | 2.3 sec. |
| Bucket Rollback | 2.0 sec. |
| Bucket Dump | 2.6 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 20.6 GPM | 78.0 LPM |
| Relief Pressure | 3046 psi | 210.0 Bar |
| Optional Flow | 30.7 GPM | 116.2 LPM |
| Hydraulic Capacity | 8.5 gal | 32.2 L |
Engine Specs
| Manufacturer | ISM |
| Model | N4LDI-TA-50SL-01 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4F |
| Rated Speed | 2800 RPM |
| Torque Power | 1800 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 67.0 HP | 50.0 kW |
| Net Power | 64.0 HP | 47.7 kW |
| Displacement | 135 cu in. | 2212 cc |
| Bore | 3.3 in. | 8.4 cm |
| Stroke | 3.9 in. | 10.0 cm |
| Peak Torque | 153 ft-lb | 208 N∙m |
| Coolant Capacity | ||
| Engine Oil Capacity | 1.9 gal | 7.1 L |
| Fuel Tank Capacity | 19.5 gal | 73.8 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 78.7 in. | 199.8 cm |
| Bucket Hinge Pin | 121.0 in. | 307.3 cm |
| Width | 69.1 in. | 175.5 cm |
| Length | 131.4 in. | 333.8 cm |
| Dump Height | 94.7 in. | 240.5 cm |
| Dump Reach | 29.8 in. | 75.8 cm |
| Ground Clearance | 8.0 in. | 20.3 cm |
| Dump Angle | 52° |
| Rollback Angle | 34° |
| Departure Angle | 25° |
