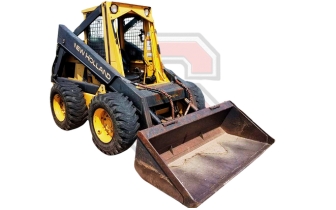

| Manufacturer | New Holland |
| Model | L784 |
| Type | Skid steer loader |
| Lift Design | Vertical |
| Years Made | 1984-1986 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 80.0 HP | 55.9 kW |
| Lifting Capacity (35% Tipping) | ||
| Lifting Capacity (50% Tipping) | 2050 lbs | 929.9 kg |
| Operating Weight | 5640 lbs | 2558.3 kg |
| Tipping Load | ||
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 7.0 mph | 11.3 km |
| Optional High Speed | 12.0 mph | 19.3 km |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 16.0 GPM | 60.6 LPM |
| Relief Pressure | 2300 psi | 158.6 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 22.0 gal | 83.3 L |
Engine Specs
| Manufacturer | Ford |
| Model | 200-G |
| Type | Gasoline |
| Cylinders | 6 |
| Emissions | N/A |
| Rated Speed | 2400 RPM |
| Torque Power | |
| Combustion | Direct injection |
| Compression Ratio | 8.3:1 |
| Firing Order | 1-5-3-6-2-4 |
| US | Metric | |
|---|---|---|
| Gross Power | 80.0 HP | 59.7 kW |
| Net Power | 75.0 HP | 55.9 kW |
| Displacement | 200 cu in. | 3278 cc |
| Bore | 3.7 in. | 9.3 cm |
| Stroke | 3.1 in. | 8.0 cm |
| Peak Torque | ||
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 76.5 in. | 194.3 cm |
| Bucket Hinge Pin | 121.5 in. | 308.6 cm |
| Width | 69.7 in. | 177.0 cm |
| Length | 144.3 in. | 366.5 cm |
| Dump Height | 99.0 in. | 251.5 cm |
| Dump Reach | 34.0 in. | 86.4 cm |
| Ground Clearance | 6.8 in. | 17.1 cm |
| Dump Angle | 46° |
| Rollback Angle | 36° |
| Departure Angle | 26° |
