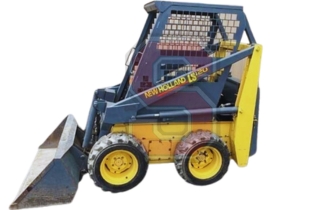

| Manufacturer | New Holland |
| Model | LS120 |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 1999-2005 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 20.0 HP | 14.9 kW |
| Lifting Capacity (35% Tipping) | 425 lbs | 192.8 kg |
| Lifting Capacity (50% Tipping) | 675 lbs | 306.2 kg |
| Operating Weight | 1980 lbs | 898.1 kg |
| Tipping Load | ||
| Lift Breakout Force | 1410 lbs | 639.6 kg |
| Tilt Breakout Force | ||
| Max. Travel Speed | 5.8 mph | 9.3 km |
| Optional High Speed | N/A | – |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 8.0 GPM | 30.2 LPM |
| Relief Pressure | 1600 psi | 110.0 Bar |
| Optional Flow | N/A | – |
| Hydraulic Capacity | 8.5 gal | 32.2 L |
Engine Specs
| Manufacturer | Onan |
| Model | P218 |
| Type | Gasoline |
| Cylinders | 2 |
| Emissions | Tier II |
| Rated Speed | 3600 RPM |
| Torque Power | 2200 RPM |
| Combustion | Indirect injection |
| Compression Ratio | 7:0.1 |
| Firing Order | 1-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 20.0 HP | 14.9 kW |
| Net Power | 18.0 HP | 13.4 kW |
| Displacement | 47.7 cu in. | 782 cc |
| Bore | 3.3 in. | 8.3 cm |
| Stroke | 2.9 in. | 7.3 cm |
| Peak Torque | ||
| Coolant Capacity | ||
| Engine Oil Capacity | 0.45 gal | 1.7 L |
| Fuel Tank Capacity | 6.0 gal | 22.7 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 69.5 in. | 176.5 cm |
| Bucket Hinge Pin | 93.4 in. | 237.2 cm |
| Width | 40.5 in. | 102.9 cm |
| Length | 92.3 in. | 234.3 cm |
| Dump Height | 72.3 in. | 183.5 cm |
| Dump Reach | 20.6 in. | 52.4 cm |
| Ground Clearance | 6.0 in. | 15.2 cm |
| Dump Angle | 38° |
| Rollback Angle | 21° |
| Departure Angle | 16° |
