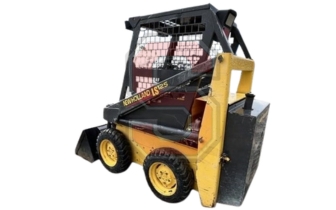

Manufacturer | New Holland |
Model | LS125 |
Type | Skid steer loader |
Lift Design | Radial |
Years Made | 2000-2006 |
Operating Specifications
US | Metric | |
---|---|---|
Horsepower | 18.0 HP | 13.2 kW |
Lifting Capacity (35% Tipping) | 480 lbs | 217.7 kg |
Lifting Capacity (50% Tipping) | 700 lbs | 317.5 kg |
Operating Weight | 2110 lbs | 957.1 kg |
Tipping Load | ||
Lift Breakout Force | 1200 lbs | 544.3 kg |
Tilt Breakout Force | ||
Max. Travel Speed | 5.8 mph | 9.3 km |
Optional High Speed | N/A | – |
Cycle Time
Raise Lift Arms | |
Lower Lift Arms | |
Bucket Rollback | |
Bucket Dump |
Hydraulic System
US | Metric | |
---|---|---|
Pump Flow | 8.0 GPM | 30.2 LPM |
Relief Pressure | 1600 psi | 110.0 Bar |
Optional Flow | N/A | – |
Hydraulic Capacity | 8.5 gal | 32.2 L |
Engine Specs
Manufacturer | New Holland |
Model | E673 |
Type | Diesel |
Cylinders | 3 |
Emissions | Tier II |
Rated Speed | 3600 RPM |
Torque Power | 2200 RPM |
Combustion | Indirect injection |
Compression Ratio | 23.5:1 |
Firing Order | 1-2-3 |
US | Metric | |
---|---|---|
Gross Power | 18.0 HP | 13.4 kW |
Net Power | 16.5 HP | 12.3 kW |
Displacement | 41.2 cu in. | 675 cc |
Bore | 2.6 in. | 6.7 cm |
Stroke | 2.5 in. | 6.4 cm |
Peak Torque | ||
Coolant Capacity | 1.2 gal | 4.5 L |
Engine Oil Capacity | 0.9 gal | 3.3 L |
Fuel Tank Capacity | 6.0 gal | 22.7 L |
Dimensions
US | Metric | |
---|---|---|
Height | 69.5 in. | 176.5 cm |
Bucket Hinge Pin | 93.4 in. | 237.2 cm |
Width | 40.5 in. | 102.9 cm |
Length | 95.2 in. | 241.9 cm |
Dump Height | 72.3 in. | 183.5 cm |
Dump Reach | 20.6 in. | 52.4 cm |
Ground Clearance | 6.0 in. | 15.2 cm |
Dump Angle | 38° |
Rollback Angle | 21° |
Departure Angle | 16° |
