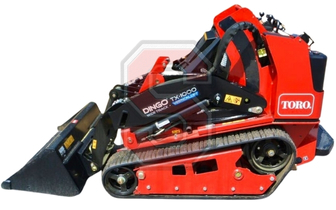

| Manufacturer | Toro Dingo |
| Model | TX1000 Wide (22328) |
| Type | Mini track loader |
| Lift Design | Vertical |
| Years Made | 2024-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 24.7 HP | 18.4 kW |
| Lifting Capacity (35% Tipping) | 1075 lbs | 488 kg |
| Lifting Capacity (50% Tipping) | 1535 lbs | 696 kg |
| Operating Weight | 2790 lbs | 1266 kg |
| Tipping Load | 3071 lbs | 1393 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 4.0 mph | 7.6 km |
| Ground Pressure | 3.6 psi | 24.8 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 15.2 GPM | 57.5 LPM |
| Relief Pressure | 3000 psi | 206.8 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 10.0 gal | 37.9 L |
Engine Specs
| Manufacturer | Kubota |
| Model | D1305 |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | Tier 4 |
| Rated Speed | 2600 RPM |
| Torque Power | |
| Combustion | Indirect injection |
| Compression Ratio | |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 24.8 HP | 18.5 kW |
| Net Power | 23.1 HP | 17.2 kW |
| Displacement | 77 cu in. | 1262 cc |
| Bore | 3.07 in. | 7.8 cm |
| Stroke | 3.46 in. | 8.0 cm |
| Peak Torque | ||
| Coolant Capacity | ||
| Engine Oil Capacity | 1.5 gal | 5.7 L |
| Fuel Tank Capacity | 11.5 gal | 44.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 53.2 in. | 135.1 cm |
| Bucket Hinge Pin | 81.0 in. | 205.7 cm |
| Width | 41.0 in. | 104.1 cm |
| Length | 100.7 in. | 255.7 cm |
| Dump Height | 61.0 in. | 154.9 cm |
| Dump Reach | 24.5 in. | 62.2 cm |
| Ground Clearance | 6.0 in. | 15.2 cm |
| Dump Angle | 40° |
| Rollback Angle | |
| Departure Angle |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 9.5 in. | 24.1 cm |
| Track Length | 81.7 in. | 207.5 cm |
| Ground Contact Length | 41.0 in. | 104.1 cm |
