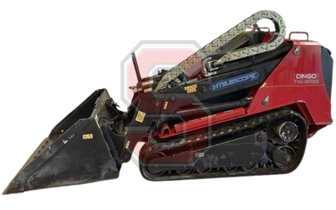

| Manufacturer | Toro Dingo |
| Model | TXL 2000 Telescoping arms (22530) retracted |
| Type | Mini track loader |
| Lift Design | Telescopic boom |
| Years Made | 2019-2026 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 49.6 HP | 37.0 kW |
| Lifting Capacity (35% Tipping) | 2000 lbs | 907 kg |
| Lifting Capacity (50% Tipping) | 2855 lbs | 1295 kg |
| Operating Weight | 6655 lbs | 3019 kg |
| Tipping Load | 5715 lbs | 2592 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 5.4 mph | 8.6 km |
| Ground Pressure | 5.3 psi | 36.5 kPa |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 21.4 GPM | 81.0 LPM |
| Relief Pressure | 3000 psi | 206.8 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 15.25 gal | 57.7 L |
Engine Specs
| Manufacturer | Kubota |
| Model | D1803 |
| Type | Diesel |
| Cylinders | 3 |
| Emissions | Tier 4 |
| Rated Speed | 2600 RPM |
| Torque Power | 1600 RPM |
| Combustion | Direct injection |
| Compression Ratio | |
| Firing Order | 1-2-3 |
| US | Metric | |
|---|---|---|
| Gross Power | 49.6 HP | 36.5 kW |
| Net Power | 47.3 HP | 34.8 kW |
| Displacement | 111.4 cu in. | 1826 cc |
| Bore | 3.4 in. | 8.7 cm |
| Stroke | 4.0 in. | 10.2 cm |
| Peak Torque | ||
| Coolant Capacity | ||
| Engine Oil Capacity | ||
| Fuel Tank Capacity | 18.3 gal | 69.3 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 67.8 in. | 172.2 cm |
| Bucket Hinge Pin | 123.4 in. | 313.4 cm |
| Width | 54.0 in. | 137.2 cm |
| Length | 136.9 in. | 347.7 cm |
| Dump Height | 88.9 in. | 226.0 cm |
| Dump Reach | 45.2 in. | 114.8 cm |
| Ground Clearance | 6.3 in. | 16.0 cm |
| Dump Angle | 46.3° |
| Rollback Angle | |
| Departure Angle |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 11.8 in. | 30.0 cm |
| Track Length | 98.8 in. | 251.0 cm |
| Ground Contact Length | 53.7 in. | 136.4 cm |
