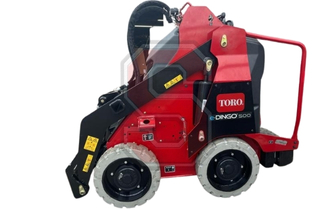

| Manufacturer | Toro Dingo |
| Model | E-Dingo 500 (22219) |
| Type | Mini skid steer |
| Lift Design | Radial |
| Years Made | 2021-2025 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 23.0 HP | 17.2 kW |
| Lifting Capacity (35% Tipping) | 515 lbs | 234 kg |
| Lifting Capacity (50% Tipping) | 730 lbs | 331 kg |
| Operating Weight | 2342 lbs | 1062 kg |
| Tipping Load | 1251 lbs | 567 kg |
| Lift Breakout Force | ||
| Tilt Breakout Force | ||
| Max. Travel Speed | 2.75 mph | 4.43 km |
| Ground Pressure |
Cycle Time
| Raise Lift Arms | |
| Lower Lift Arms | |
| Bucket Rollback | |
| Bucket Dump |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 6.5 GPM | 24.6 LPM |
| Relief Pressure | 3250 psi | 224.1 Bar |
| Optional Flow | ||
| Hydraulic Capacity | 6.0 gal | 22.7 L |
Engine Specs
| Manufacturer | Toro |
| Type | Electric drive motor powered by Lithium-Ion battery packs |
| Emissions | Zero Emission |
| Capacity | 18.2 HP |
| Battery Type | Lithium Ion |
| Working Duration | 8 hours |
| Voltage | 15 AMP @ 120V |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 54.3 in. | 137.9 cm |
| Bucket Hinge Pin | 81.0 in. | 205.7 cm |
| Width | 30.0 in. | 76.2 cm |
| Length | 88.0 in. | 223.5 cm |
| Dump Height | 61.0 in. | 154.9 cm |
| Dump Reach | 21.5 in. | 54.6 cm |
| Ground Clearance | 4.25 in. | 10.8 cm |
| Dump Angle | 38° |
| Rollback Angle | |
| Departure Angle |
