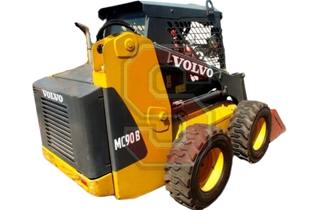

| Manufacturer | Volvo |
| Model | MC90B |
| Type | Skid steer loader |
| Lift Design | Radial |
| Years Made | 2006-2011 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 85.6 HP | 63.9 kW |
| Lifting Capacity (35% Tipping) | ||
| Lifting Capacity (50% Tipping) | 2000 lbs | 907 kg |
| Operating Weight | 6986 lbs | 3169 kg |
| Tipping Load | 4030 lbs | 1828 kg |
| Lift Breakout Force | 4120 lbs | 1869 kg |
| Tilt Breakout Force | 5400 lbs | 2449 kg |
| Max. Travel Speed | 7.1 mph | 11.4 km |
Cycle Time
| Raise Lift Arms | 2.9 sec. |
| Lower Lift Arms | 1.5 sec. |
| Bucket Rollback | 1.5 sec. |
| Bucket Dump | 2.1 sec. |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 21.4 GPM | 81.0 LPM |
| Relief Pressure | 3000 psi | 207 Bar |
| Optional Flow | 28.5 GPM | 108 LPM |
| Hydraulic Capacity | 22.9 gal | 87.0 L |
Engine Specs
| Manufacturer | Volvo |
| Model | D3.4D (4TNV98-ZWVC4U) |
| Type | Diesel |
| Cylinders | 4 |
| Rated Speed | 2500 RPM |
| Torque Power | 1200 RPM |
| Combustion | Direct injection |
| Compression Ratio | 18.5 (effective 16.7) |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 85.6 HP | 63.9 kW |
| Displacement | 202 cu.in. | 3318 cc |
| Bore | 3.85 in. | 9.8 cm |
| Stroke | 4.3 in. | 11.0 cm |
| Peak Torque | 213 ft-lb | 289 N∙m |
| Coolant Capacity | 3.7 gal | 14.0 L |
| Engine Oil Capacity | 2.9 gal | 11.0 L |
| Fuel Tank Capacity | 20.6 gal | 78.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 79.9 in. | 202.8 cm |
| Bucket Hinge Pin | 119.7 in. | 303.9 cm |
| Width | 72.3 in. | 183.8 cm |
| Length | 137.8 in. | 349.9 cm |
| Dump Height | 90.4 in. | 229.7 cm |
| Dump Reach | 21.9 in. | 55.5 cm |
| Ground Clearance | 8.0 in. | 20.2 cm |
| Dump Angle | 40° |
| Rollback Angle | 29° |
| Departure Angle | 28° |
