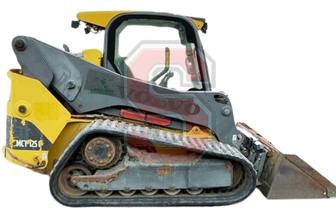

| Manufacturer | Volvo |
| Model | MCT125C |
| Type | Compact track loader |
| Lift Design | Vertical |
| Years Made | 2012-2017 |
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 73.8 HP | 55.0 kW |
| Lifting Capacity (35% Tipping) | 2600 lbs | 1179 kg |
| Lifting Capacity (50% Tipping) | 3995 lbs | 1812 kg |
| Operating Weight | 10756 lbs | 4879 kg |
| Tipping Load | 7990 lbs | 3624 kg |
| Lift Breakout Force | 5807 lbs | 2634 kg |
| Tilt Breakout Force | 7187 lbs | 3260 kg |
| Max. Travel Speed | 5.6 mph | 9.0 km |
| Optional High Speed | 7.8 mph | 12.6 km |
| Ground Pressure | 6.5 psi | 44.6 kPa |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 23.8 GPM | 90.0 LPM |
| Relief Pressure | 3350 psi | 230 bar |
| Optional Flow | 33.0 GPM | 125.0 LPM |
| Hydraulic Capacity | 15.9 gal | 60.0 L |
Engine Specs
| Manufacturer | Volvo |
| Model | TCAE-55 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 |
| Rated Speed | 2200 RPM |
| Torque Power | 1200 RPM |
| Combustion | Direct injection |
| Compression Ratio | 17.2 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 73.8 HP | 55.0 kW |
| Net Power | 73.1 HP | 54.5 kW |
| Displacement | 268 cu in. | 4399 cc |
| Bore | 4.1 in. | 10.3 cm |
| Stroke | 5.2 in. | 13.2 cm |
| Peak Torque | 295 ft-lb | 400.0 N∙m |
| Coolant Capacity | 4.1 gal | 15.5 L |
| Engine Oil Capacity | 4.0 gal | 15.0 L |
| Fuel Tank Capacity | 27.3 gal | 103.3 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 81.9 in. | 208.0 cm |
| Bucket Hinge Pin | 125.2 in. | 318.0 cm |
| Width | 78.0 in. | 198.0 cm |
| Length | 145.3 in. | 369.0 cm |
| Dump Height | 94.1 in. | 239.0 cm |
| Dump Reach | 34.3 in. | 87.0 cm |
| Ground Clearance | 9.8 in. | 24.8 cm |
| Dump Angle | 42° |
| Rollback Angle | 30° |
| Departure Angle | 28.7° |
Undercarriage
| US | Metric | |
|---|---|---|
| Track Width | 12.6 in. | 32.0 cm |
| Track Length | 115.8 in. | 294 cm |
| Ground Contact Length | 82.7 in. | 210 cm |
