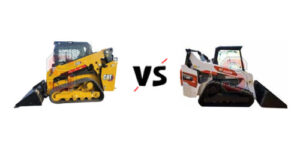

Bobcat T66 vs Cat 255

Specifications Cat 255
Cat 255
Bobcat T66
Bobcat T66
Lift DesignVerticalVertical
Years Made2024-20252020-2025
Horsepower74.3 HP74.0 HP
Lifting Capacity (35% Tipping)2499 lbs2450 lbs
Lifting Capacity (50% Tipping)3570 lbs3500 lbs
Operating Weight9578 lbs8927 lbs
Tipping Load7140 lbs7000 lbs
Max. Travel Speed5.7 mph10.2 mph
Pump Flow23.0 GPM17.6 GPM
Relief Pressure3500 psi3500 psi
High Flow30.0 GPM
Optional Flow26.9 GPM
Peak Torque221 ft-lb283.9 ft-lb
Bucket Hinge Pin124.0 in.120.0 in.
Length135.0 in.134.9 in.
Dump Height95.4 in.94.3 in.
Dump Reach21.3 in.34.2 in.
Track Length110.2 in.
Ground Contact Length58.5 in.54.3 in.
  • Cat 255 has better Horsepower.
  • Cat 255 has better Weight.
  • Cat 255 has better Lifting Capacity.
  • Cat 255 has better Tipping Load.
  • Bobcat T66 has better Travel Speed.
  • Bobcat T66 has better Peak Torque.
  • Cat 255 has better Pin Height.

Compare Two Different Models



This page provides specification comparisons for skid steer loaders to support your purchasing decisions. It does not promote, criticize, or advertise any specific brand or model. Only technical specs are compared on this page: Features, comfort, and additional options are not evaluated. Please note that specs may vary by model year. Please consult your dealer to verify the accuracy of the information. The information provided on our site is for general informational purposes only and does not constitute any commercial commitment; users are responsible for evaluating all data at their own discretion.
