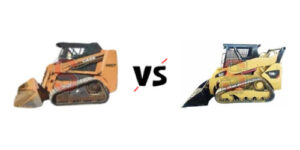

Case 440ct vs Cat 259b3

Published Date: 16/10/2025
Last Check: 16/10/2025

Specifications	Case 440ct	Cat 259b3
Lift Design	Vertical	Vertical
Years Made	2008-2012	2010-2013
Horsepower	89.0 HP	75.0 HP
Lifting Capacity (35% Tipping)	2100 lbs	2065 lbs
Lifting Capacity (50% Tipping)	3000 lbs	2950 lbs
Operating Weight	8915 lbs	8934 lbs
Tipping Load	6000 lbs	5900 lbs
Max. Travel Speed	5.1 mph	5.9 mph
Pump Flow	21.9 GPM	22.0 GPM
Relief Pressure	3050 psi	3335 psi
High Flow	–	N/A
Optional Flow	32.6 GPM	–
Peak Torque	236 ft-lb	148 ft-lb
Bucket Hinge Pin	121.5 in.	120.0 in.
Length	132.9 in.	135.0 in.
Dump Height	96.6 in.	88.0 in.
Dump Reach	23.4 in.	29.0 in.
Track Length	103.9 in.	107.0 in.
Ground Contact Length	56.5 in.	59.0 in.

✅ Case 440ct has better Horsepower.
✅ Cat 259b3 has better Weight.
✅ Case 440ct has better Lifting Capacity.
✅ Case 440ct has better Tipping Load.
✅ Cat 259b3 has better Travel Speed.
✅ Case 440ct has better Peak Torque.
✅ Case 440ct has better Pin Height.
