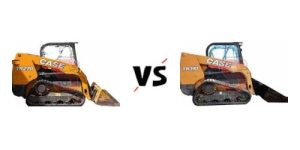

Case Tr270 vs Case Tr310

Specifications Case Tr270
Case Tr270
Case Tr310
Case Tr310
Lift DesignRadialRadial
Years Made2015-20252015-2025
Horsepower74.0 HP74.0 HP
Lifting Capacity (35% Tipping)1890 lbs2170 lbs
Lifting Capacity (50% Tipping)2700 lbs3100 lbs
Operating Weight8270 lbs8880 lbs
Tipping Load5400 lbs6200 lbs
Max. Travel Speed8.0 mph5.1 mph
Pump Flow24.2 GPM24.2 GPM
Relief Pressure3050 psi3046 psi
Optional Flow32.4 GPM32.4 GPM
Peak Torque232 ft-lb232 ft-lb
Bucket Hinge Pin123.0 in.123.0 in.
Length129.6 in.129.6 in.
Dump Height98.2 in.98.2 in.
Dump Reach25.4 in.25.4 in.
Track Length105.1 in.105.1 in.
Ground Contact Length55.9 in.55.9 in.
  • ➖ Both models have similar Horsepower.
  • Case Tr310 has better Weight.
  • Case Tr310 has better Lifting Capacity.
  • Case Tr310 has better Tipping Load.
  • Case Tr270 has better Travel Speed.
  • ➖ Both models have similar Peak Torque.
  • ➖ Both models have similar Pin Height.
