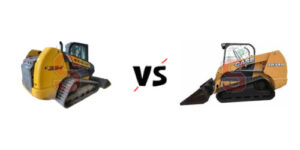

Case Tr340 vs New Holland C334

Specifications New Holland C334
New Holland C334
Case Tr340
Case Tr340
Lift DesignRadialRadial
Years Made2020-20252017-2025
Horsepower90.0 HP90.0 HP
Lifting Capacity (35% Tipping)2380 lbs2380 lbs
Lifting Capacity (50% Tipping)3400 lbs3400 lbs
Operating Weight10000 lbs10000 lbs
Tipping Load6800 lbs6800 lbs
Max. Travel Speed5.5 mph8.0 mph
Pump Flow24.2 GPM24.2 GPM
Relief Pressure3046 psi3046 psi
Optional Flow37.6 GPM37.6 GPM
Peak Torque282 ft-lb282 ft-lb
Bucket Hinge Pin126.5 in.126.5 in.
Length142.6 in.143.5 in.
Dump Height102.4 in.102.1 in.
Dump Reach21.6 in.25.4 in.
Track Length118.7 in.118.7 in.
Ground Contact Length64.5 in.64.5 in.
  • ➖ Both models have similar Horsepower.
  • ➖ Both models have similar Weight.
  • ➖ Both models have similar Lifting Capacity.
  • ➖ Both models have similar Tipping Load.
  • Case Tr340 has better Travel Speed.
  • ➖ Both models have similar Peak Torque.
  • ➖ Both models have similar Pin Height.
