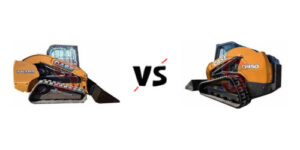

Case Tv380 vs Case Tv450

Published Date: 16/07/2025
Last Check: 16/07/2025

Specifications	Case Tv380	Case Tv450
Lift Design	Vertical	Vertical
Years Made	2017-2025	2010-2020
Horsepower	90.0 HP	90.0 HP
Lifting Capacity (35% Tipping)	2660 lbs	3150 lbs
Lifting Capacity (50% Tipping)	3800 lbs	4500 lbs
Operating Weight	10550 lbs	10600 lbs
Tipping Load	7600 lbs	9000 lbs
Max. Travel Speed	8.0 mph	5.5 mph
Pump Flow	24.2 GPM	24.2 GPM
Relief Pressure	3046 psi	3046 psi
Optional Flow	37.6 GPM	39.5 GPM
Peak Torque	282 ft-lb	282 ft-lb
Bucket Hinge Pin	131.6 in.	131.6 in.
Length	143.2 in.	144.6 in.
Dump Height	105.1 in.	101.9 in.
Dump Reach	31.4 in.	35.5 in.
Track Length	119.1 in.	120.2 in.
Ground Contact Length	64.5 in.	64.5 in.

➖ Both models have similar Horsepower.
✅ Case Tv450 has better Weight.
✅ Case Tv450 has better Lifting Capacity.
✅ Case Tv450 has better Tipping Load.
✅ Case Tv380 has better Travel Speed.
➖ Both models have similar Peak Torque.
➖ Both models have similar Pin Height.

Compare Two Different Models

First Model:

Second Model:

This page provides specification comparisons for skid steer loaders to support your purchasing decisions. It does not promote, criticize, or advertise any specific brand or model. Only technical specs are compared on this page: Features, comfort, and additional options are not evaluated. Please note that specs may vary by model year. Please consult your dealer to verify the accuracy of the information. The information provided on our site is for general informational purposes only and does not constitute any commercial commitment; users are responsible for evaluating all data at their own discretion.
