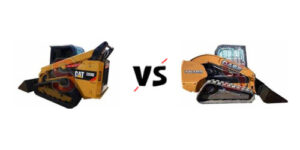

Case Tv380 vs Cat 289d

Published Date: 01/10/2025
Last Check: 01/10/2025

Specifications	Cat 289d	Case Tv380
Lift Design	Vertical	Vertical
Years Made	2014-2020	2017-2025
Horsepower	74.3 HP	90.0 HP
Lifting Capacity (35% Tipping)	2660 lbs	2660 lbs
Lifting Capacity (50% Tipping)	3800 lbs	3800 lbs
Operating Weight	10553 lbs	10550 lbs
Tipping Load	7600 lbs	7600 lbs
Max. Travel Speed	7.0 mph	8.0 mph
Pump Flow	23.0 GPM	24.2 GPM
Relief Pressure	3335 psi	3046 psi
Optional Flow	–	37.6 GPM
Peak Torque	265 ft-lb	282 ft-lb
Bucket Hinge Pin	125.1 in.	131.6 in.
Length	146.2 in.	143.2 in.
Dump Height	94.0 in.	105.1 in.
Dump Reach	14.5 in.	31.4 in.
Track Length	117.9 in.	119.1 in.
Ground Contact Length	64.2 in.	64.5 in.

✅ Case Tv380 has better Horsepower.
✅ Cat 289d has better Weight.
➖ Both models have similar Lifting Capacity.
➖ Both models have similar Tipping Load.
✅ Case Tv380 has better Travel Speed.
✅ Case Tv380 has better Peak Torque.
✅ Case Tv380 has better Pin Height.
