Home » Compare » Cat 246b vs Cat 248b

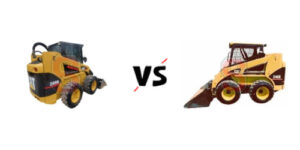

Cat 246b vs Cat 248b

Specifications Cat 248b
Cat 248b
Cat 246b
Cat 246b
Lift DesignRadialRadial
Years Made2005-20062004-2011
Horsepower82.0 HP82.0 HP
Lifting Capacity (35% Tipping)1450 lbs1450 lbs
Lifting Capacity (50% Tipping)2000 lbs2000 lbs
Operating Weight7321 lbs7142 lbs
Tipping Load4188 lbs4000 lbs
Max. Travel Speed7.7 mph7.7 mph
Pump Flow22.0 GPM22.0 GPM
Relief Pressure4060 psi3335 psi
High Flow33.0 GPMN/A
Peak Torque
Bucket Hinge Pin122.0 in.122.0 in.
Length138.0 in.138.0 in.
Dump Height94.0 in.94.0 in.
Dump Reach21.0 in.21.0 in.
  • ➖ Both models have similar Horsepower.
  • Cat 248b has better Weight.
  • ➖ Both models have similar Lifting Capacity.
  • Cat 248b has better Tipping Load.
  • ➖ Both models have similar Travel Speed.
  • ➖ Both models have similar Pin Height.

Compare Two Different Models



This page provides specification comparisons for skid steer loaders to support your purchasing decisions. It does not promote, criticize, or advertise any specific brand or model. Only technical specs are compared on this page: Features, comfort, and additional options are not evaluated. Please note that specs may vary by model year. Please consult your dealer to verify the accuracy of the information. The information provided on our site is for general informational purposes only and does not constitute any commercial commitment; users are responsible for evaluating all data at their own discretion.
