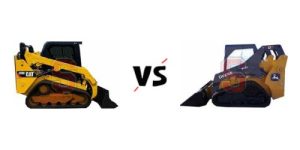

Cat 259d vs John Deere 317g

Specifications Cat 259d
Cat 259d
John Deere 317g
John Deere 317g
Lift DesignVerticalVertical
Years Made2015-20202017-2025
Horsepower74.3 HP65.0 HP
Lifting Capacity (35% Tipping)2030 lbs2125 lbs
Lifting Capacity (50% Tipping)2900 lbs3035 lbs
Operating Weight8846 lbs8420 lbs
Tipping Load5800 lbs6070 lbs
Max. Travel Speed8.5 mph7.0 mph
Pump Flow20.0 GPM17.0 GPM
Relief Pressure3335 psi3450 psi
High Flow30.0 GPM
Peak Torque159 ft-lb207 ft-lb
Bucket Hinge Pin121.0 in.121.0 in.
Length137.3 in.127.6 in.
Dump Height89.9 in.95.6 in.
Dump Reach23.9 in.31.0 in.
Track Length108.9 in.103.0 in.
Ground Contact Length59.0 in.91.0 in.
  • Cat 259d has better Horsepower.
  • Cat 259d has better Weight.
  • John Deere 317g has better Lifting Capacity.
  • John Deere 317g has better Tipping Load.
  • Cat 259d has better Travel Speed.
  • John Deere 317g has better Peak Torque.
  • ➖ Both models have similar Pin Height.

Compare Two Different Models



This page provides specification comparisons for skid steer loaders to support your purchasing decisions. It does not promote, criticize, or advertise any specific brand or model. Only technical specs are compared on this page: Features, comfort, and additional options are not evaluated. Please note that specs may vary by model year. Please consult your dealer to verify the accuracy of the information. The information provided on our site is for general informational purposes only and does not constitute any commercial commitment; users are responsible for evaluating all data at their own discretion.
