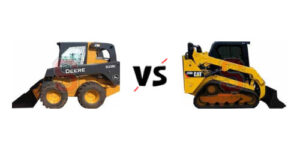

Cat 259d vs John Deere 328e

Specifications John Deere 328e
John Deere 328e
Cat 259d
Cat 259d
Lift DesignVerticalVertical
Years Made2013-20172015-2020
Horsepower86.0 HP74.3 HP
Lifting Capacity (35% Tipping)1950 lbs2030 lbs
Lifting Capacity (50% Tipping)2800 lbs2900 lbs
Operating Weight8770 lbs8846 lbs
Tipping Load5600 lbs5800 lbs
Max. Travel Speed7.0 mph8.5 mph
Pump Flow21.0 GPM20.0 GPM
Relief Pressure3450 psi3335 psi
High Flow30.0 GPM
Optional Flow35.0 GPM
Peak Torque266 ft-lb159 ft-lb
Bucket Hinge Pin126.6 in.121.0 in.
Length144.0 in.137.3 in.
Dump Height101.1 in.89.9 in.
Dump Reach31.3 in.23.9 in.
Track Length108.9 in.
Ground Contact Length59.0 in.
  • John Deere 328e has better Horsepower.
  • Cat 259d has better Weight.
  • Cat 259d has better Lifting Capacity.
  • Cat 259d has better Tipping Load.
  • Cat 259d has better Travel Speed.
  • John Deere 328e has better Peak Torque.
  • John Deere 328e has better Pin Height.
